Country of Origin
United States
Shipping Weight
0.001 pounds
Manufacturer P/N
MS21060L4
Schedule B Code
7318.16.0000
Ship Dimensions
1 x 1 x 1 inches

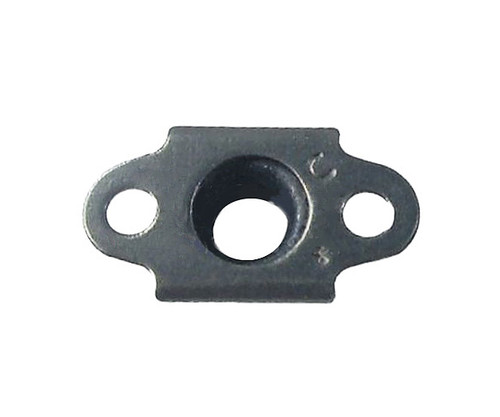

Thread Class: 3B Thread Direction: Right-Hand Locking Feature: Prevailing Torque All Metal Design Lubrication: Dry Film Lubricant Mounting Hole Diameter: 0.098 Inches Minimum And 0.103 Inches Maximum Nut Style: Plate Nut Length: 1.292 Inches Maximum Nut Height: 0.281 Inches Maximum Plate Thickness: 0.032 Inches Maximum Plate Width: 0.350 Inches Minimum And 0.516 Inches Maximum Nut Mounting Provision: Straight Holes Mounting Hole Arrangement Style: 2 Holes Distance From Aperture Center To Mounting Hole Center: 0.500 Inches Nominal Center To Center Distance Between Mounting Holes Along Length: 0.998 Inches Minimum And 1.002 Inches Maximum Temp Rating: 450.0 Deg Fahrenheit Nominal Thread Series: Unjf Features Provided: Floating Nut Thread Quantity Per Inch: 28 Hardness Rating: 49.0 Rockwell C Maximum Nominal Thread Size: 0.250 Inches Material: Iron Alloy 660 Overall Material Document And Classification: Ams 5525 Assn Std Single Material Response Overall Or Ams 5735 Assn Std Single Material Response Overall Or Ams 5737 Assn Std Single Material Response Overall Surface Treatment: Passivate Overall
