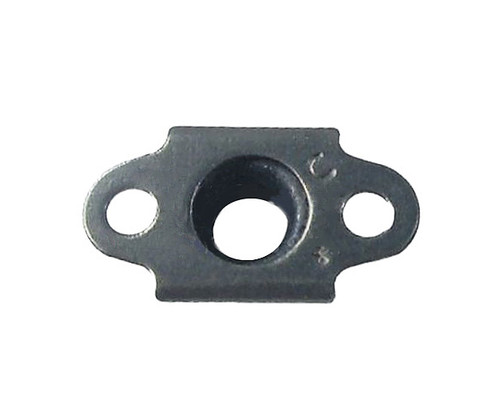

The MS21060L3 is a self-locking nutplate with a two lug designation; it is made of corrosion resistant steel (CRES). More specs are waiting below.
∗Unless otherwise noted, values are in inches
- Thread Class: 3B
- Thread Direction: Right-hand
- Locking Feature: Prevailing torque
- Lubrication: Dry film lubricant
- Mounting Hole Diameter Range: .098 to .103
- Nut Style: Plate
- Maximum Nut Length: .948
- Maximum Nut Height: .250
- Maximum Plate Thickness: .032
- Plate Width Range: .290 to .416
- Nut Mounting Provision: Straight holes
- Mounting Hole Arrangement Style: 2 holes
- Distance from Aperture Center to Mounting Hole Center Range: .339 to .349
- Center to Center Distance Between Mounting Holes Along Length Range: .686 to .690
- Nominal Temperature Rating (°F): 450
- Thread Series: UNJF
- Features Provided: Floating nut
- Thread Quantity (per inch): 32
- Hardness Rating (Rockwell): 49
- Nominal Thread Size: .190
- Material: Corrosion resistant steel
- Surface Treatment: Passivate
Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
EAR99
Manufacturer P/N
MS21060L3
Schedule B Code
7318.16.0000
Pack Quantity
1
NSN
5310-01-497-4173
Alternate PN#s
NAS686C3M
