Approvals and Conformities
NSN
5310-00-088-0552
Pilatus PN/Spec#
938.07.17.608
NAS PN/Spec#
NAS1021N7
Aeronautical Standard PN/Spec#
AN365-720
Alternate PN#s
50NE070, F52NE-070U
Product Attributes
Country of Origin
United States
Shipping Weight
0.005 pounds
ECCN
EAR99
Color Family
Gold
Manufacturer P/N
MS21044N7
Schedule B Code
7318.16.0000
Pack Quantity
5
Series
MS21044
Thread
7/16-20
Height
.469 / .435
Width
.690 / .679
Color
Gold

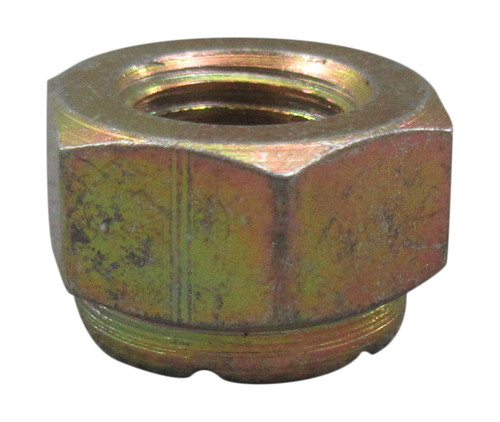

The MS21044N7 is as the name describes—a self-locking nut composed of steel. For more information, see the specs below.
*Unless otherwise noted, values are in inches
- Material:Steel (Composition 1213 or 1035 or 1018 or 1015 or 1010 or 1009 or 1008 or 1006 or 11L37 or 12L14)
- Material Document and Classification: QQ-A-200/2, T6 or QQ-A-225sol;5, T4 or QQ-A-225sol;6, T6 QQ-A-200sol;11, T6
- Surface Treatment: Cadmium and chromate
- Surface Treatment Document and Classification: QQ-P-416, Type 2, Class 3
- Thread Class: 3B
- Thread Direction: Right-hand
- Locking Feature: Prevailing torque with nonmetallic insert
- Lubrication: Soluble lubricant
- Nut Style: Hexagon
- Nominal Nut Height Range (cm):.435 to .469
- Width Across Flats: .679 to .690
- Nominal Temperature Range (°F): 250
- Thread Series: UNJF
- Thread Quantity (per inch): 20
- Nominal Thread Size: .438
- Nominal Countersink Angle: 88 degrees
- Bearing Surface Type: Chamfered or washer faced
- Special Features: Weapon system essential
