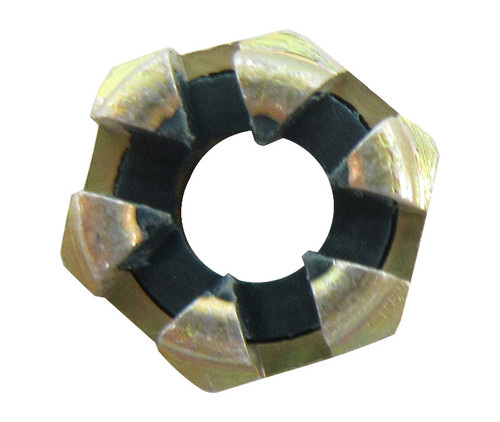

Military Standard MS17825-4 Steel Nut, Self-Locking, Slotted, Hexagon

Our Part #: SGP133269
Manufacture Part #: MS17825-4
Our Price: $2.50
Price Per Each

Bulk Shop & Save

  • 100 - 249 $2.15 ea.
  • 250 - 499 $2.09 ea.
  • 500 - 999 $2.03 ea.
  • 1000 + $1.98 ea.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Approvals and Conformities

Approvals and Conformities

NSN
5310-00-961-8390
Alternate PN#s
F12NE4753-048, PCR64

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
9A991.d
Color Family
Gold
Manufacturer P/N
MS17825-4
Schedule B Code
7318.16.0000
Pack Quantity
1
Ship Dimensions
2 x 1 x 2 inches
Series
MS17825
Thread
.2500-28
Height
.296 / .266
Width
.439 / .430
Color
Gold
Material
Steel
  • Thread Class : 3B
  • Thread Direction : Right-Hand
  • Locking Feature : Prevailing Torque With Nonmetallic Insert
  • Nut Style : Slotted, Hexagon
  • Nut Height : 0.266 Inches Minimum And 0.296 Inches Maximum
  • Width Across Flats : 0.430 Inches Minimum And 0.439 Inches Maximum
  • Temp Rating : 250.0 Deg Fahrenheit Nominal
  • Thread Series : Unjf
  • Thread Quantity Per Inch : 28
  • Nominal Thread Size : 0.250 Inches
  • Bearing Surface Type : Washer Faced
  • Material : Plastic Polyamide Locking Insert
  • Material : Steel Nut
  • Surface Treatment : Cadmium Overall Except Insert And Chromate Overall Except Insert
  • Surface Treatment Document And Classification : Qq-P-416,Type 2,Class 2 Fed Spec Single Treatment Response Overall Except Insert
