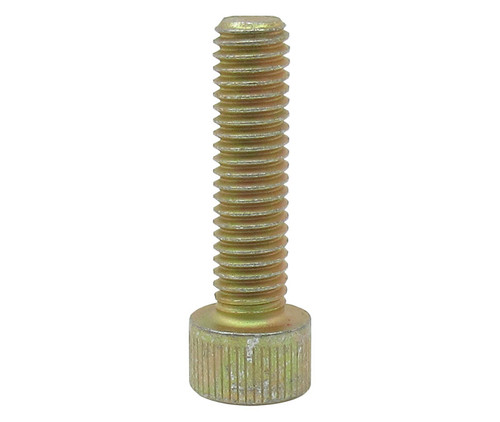

Military Standard MS16998-29 Steel Screw, Cap, Socket Head

Military Standard MS16998-29 Steel Screw, Cap, Socket Head
Military Standard MS16998-29 Steel Screw, Cap, Socket Head
Military Standard MS16998-29 Steel Screw, Cap, Socket Head
Military Standard MS16998-29 Steel Screw, Cap, Socket Head
Our Part #: SGP133233
Manufacture Part #: MS16998-29
Our Price: $0.85
Price Per Each

Bulk Shop & Save

  • 100 - 249 $0.72 ea.
  • 250 - 499 $0.70 ea.
  • 500 - 999 $0.68 ea.
  • 1000 + $0.66 ea.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

NSN
5306-01-428-6721
MIL-SPEC#
FF-S-86

Product Attributes

Country of Origin
United States
Shipping Weight
0.003 pounds
ECCN
9A991.d
Color Family
Gray
Manufacturer P/N
MS16998-29
Schedule B Code
7318.15.2000
Pack Quantity
1
Series
MS16998
Diameter
.1900-32
Length
3/4"
Color
Gray
Material
Alloy Steel
  • Thread Class: 3A
  • Thread Direction: Right-Hand
  • Thread Length: 0.657 Inches Minimum And 0.750 Inches Maximum
  • Fastener Length: 0.719 Inches Minimum And 0.750 Inches Maximum
  • Head Style: Flat Chamfer
  • Head Diameter: 0.303 Inches Minimum And 0.313 Inches Maximum
  • Head Height: 0.185 Inches Minimum And 0.190 Inches Maximum
  • Internal Drive Style: Hexagon
  • Nominal Thread Diameter: 0.190 Inches
  • Width Across Flats: 0.156 Inches Minimum And 0.159 Inches Maximum
  • Thread Quantity Per Inch: 32
  • Minimum Tensile Strength: 160000 Pounds Per Square Inch
  • Hardness Rating: 36.0 Rockwell C Minimum Overall And 45.0 Rockwell C Maximum Overall
  • Minimum Yield Strength: 130000 Pounds Per Square Inch
  • Material: Steel Overall
  • Surface Treatment: Cadmium Overall And Chromate Overall
  • Surface Treatment Document And Classification: Qq-P-416 Ty2 Cl3 Fed Spec Single Treatment Response Overall
  • Thread Series Designator: Unf
  • Nondefinitive Spec/Std Data: 6 Type
