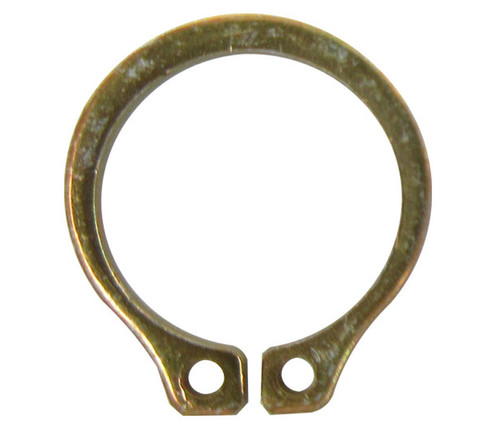

Military Standard MS16624-1043 Steel Ring, Retaining

Our Part #: SGP133067
Manufacture Part #: MS16624-1043
Our Price: $0.38
Price Per Each

Bulk Shop & Save

  • 100 - 249 $0.31 ea.
  • 250 - 499 $0.30 ea.
  • 500 - 999 $0.29 ea.
  • 1000 + $0.28 ea.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Approvals and Conformities

Approvals and Conformities

NSN
5325-00-803-7315

Product Attributes

Country of Origin
United States
Shipping Weight
0.003 pounds
ECCN
9A991.d
Manufacturer P/N
MS16624-1043
Schedule B Code
8710.00.0090
Pack Quantity
1
Ship Dimensions
1 x 1 x 0 inches
Series
MS16624
Shaft Size
7/16"
Series
MS16624
Material
Cadmium Plated Steel
MS16624-1043's shaft diameter is 7/16" and is .025" thick. MS16624s are external retaining rings, also known as "circlips," made of carbon steel and are axially assembled. They have a tapered section as well as a cadmium plated exterior finish.

Ever wondered what the MS refers to in many parts numbers? SkyGeek does and because we are geeks, it's in our nature to find out. It stands for Military Standard, which means the part has been both tested and certified by US Armed Forces and has met or exceeded such standards. Pretty cool, huh? If the military approves then so do we and so will you.

Features

  • Cross-Sectional Shape Style: Rectangular
  • Inside Diameter: 0.390 Inches Minimum And 0.397 Inches Maximum
  • Casehardening Indicator: Not Casehardened
  • Major Thickness: 0.023 Inches Minimum And 0.027 Inches Maximum
  • Ring Style: External
  • Usage Design: External
  • Material Hardness Rating: 69.5 Rockwell Superficial 30-N Minimum And 73.0 Rockwell Superficial 30-N Maximum
  • Material: Steel,Fed Std 66 AISI 1066 Or 1069 Or 1070 Or 1072 Or 1074 Or 1075 Or 1078 Or 1080 Or 1084 Or 1086 Or 1090
  • Surface Treatment: Cadmium, QQ-P-416, Type 2, Class 3 Or Zinc Plated,Mil-C-81562,Ty 2 Cl 3
