Military Specification M83248/1-214 O-Ring - 25/Pack

Military Specification M83248/1-214 O-Ring - 25/Pack
Military Specification M83248/1-214 O-Ring - 25/Pack
Military Specification M83248/1-214 O-Ring - 25/Pack
Our Part #: SGP129552-X25
Manufacture Part #: M83248-1-214
Our Price: $58.50
Price Per Pack - (Pack = 25 ea)

Bulk Shop & Save

  • 4 - 9 $48.75 ($1.95 ea)
  • 10 - 19 $47.25 ($1.89 ea)
  • 20 - 39 $45.75 ($1.83 ea)
  • 40 + $44.50 ($1.78 ea)
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: International orders are shipped from their respective locations, which may take an additional 7-10 days to process. We strive to consolidate items into one shipment to minimize duties and taxes. However, if items are located in different locations, separate shipments may be necessary.

Related Items

Description

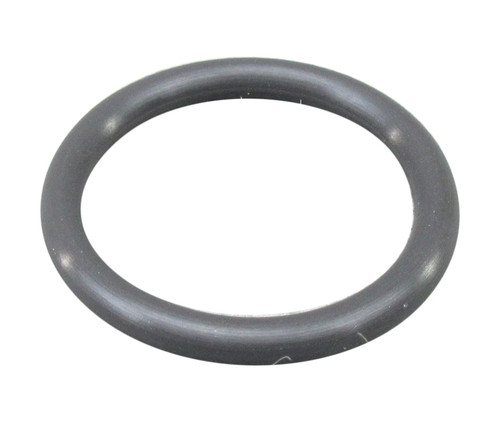

M83248/1-214, as the name suggest, is an O-ring composed of fluorocarbon rubber. It has a 1" inner diameter, a 1-1/4" outer diameter, and a 1/8" width. M83248 series O-rings are made of Viton, or fluorocarbon rubber, which has extremely good fuel and heat resistance and is ideally suited for aircraft fuel system applications. This O-ring conforms to the following specification: MIL-R-83248. Check the features for more details.
  • Cross-Sectional Height: 0.135 Inches Minimum And 0.143 Inches Maximum
  • Center Hole Diameter: 0.974 Inches Minimum And 0.994 Inches Maximum
  • Peripheral Diameter: 1.262 Inches Nominal
  • Elongation Percentage: 125 Maximum
  • Hardness Rating: 75.0 Shore Durometer A Nominal Overall
  • Criticality Code Justification: Zzzw
  • Material: Rubber Fluorocarbon Class Fpm Overall
  • Departure From Cited Document: Material Will Be In Accordance With Ships Parts Control Center Activity Hx Quality Control, Manufacturing And Testing Specifications
    • Product Attributes
    Country of Origin
    United States
    Shipping Weight
    0.003 pounds
    ECCN
    9A991.d
    Color Family
    Black
    Manufacturer P/N
    M83248/1-214
    Schedule B Code
    4016.93.0000
    Pack Quantity
    25
    Series
    M83248-1
    Inside Diameter
    1
    Outside Diameter
    1-1/4
    Width
    1/8
    Color
    Black
    Material
    Rubber
    Approvals and Conformities
    NSN
    5331-00-165-1941
    MIL-SPEC#
    MIL-R-83248
    Alternate PN#s
    AS3209-214, AS568-214, MS9388-214, ST1050-214, S9413-214
