Country of Origin
United States
Shipping Weight
0.05 pounds
Manufacturer P/N

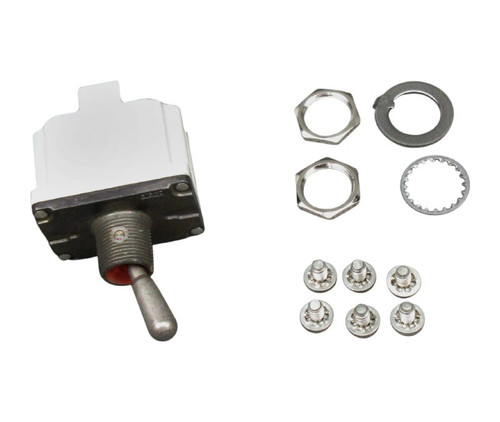

MS24524-23
Schedule B Code
8710.00.0090
Ship Dimensions
3 x 2 x 2 inches
Thread Class: 2A Body Style: Bushing Mount Overall Length: 1.340 Inches Maximum Overall Height: 2.580 Inches Maximum Overall Width: 0.910 Inches Maximum Bushing Length: 0.450 Inches Minimum And 0.490 Inches Maximum Body Length: 1.340 Inches Maximum Body Width: 0.910 Inches Maximum Body Height: 0.950 Inches Minimum Actuator Style: Round Actuator Diameter: 0.235 Inches Minimum And 0.245 Inches Maximum Actuator Height: 0.660 Inches Minimum And 0.720 Inches Maximum Actuator Position-Action Relationship: Up Position Maintained And Down Position Maintained Maximum Voltage Rating In Volts: 115.0 Ac And 28.0 Dc End Item Identification: Mrap - Rg-33 Inclosure Type: Fully Inclosed Mounting Method: Threaded Bushing Features Provided: Actuator Seal Thread Quantity Per Inch: 32 Nominal Thread Size: 0.469 Inches Nonpile-Up Contact Arrangement: 2 Pole, Double Throw, Both Positions Maintained Single Switch Unit Contact Load Current Rating At Maximum Rated Voltage: 20.000 Amperes Resistive Dc And 15.000 Amperes Inductive Dc And 7.000 Amperes Lamp Dc And 15.000 Amperes Resistive Ac And 15.000 Amperes Inductive Ac And 4.000 Amperes Lamp Ac Test Data Document: 81349-Mil-Dtl-3950 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting Generaltype Data On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.). Thread Series Designator: Uns Terminal Type And Quantity: 4 Screw
