Country of Origin
United States
Shipping Weight
1.85 pounds
Manufacturer P/N

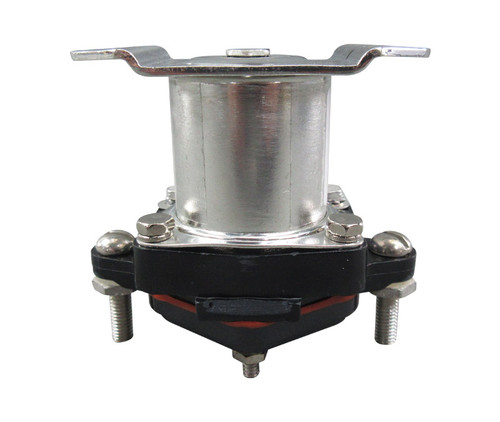

MS24166-D1
Schedule B Code
8536.41.0065
Ship Dimensions
5 x 5 x 5 inches
Overall Length: 2.750 Inches Maximum Center To Center Distance Between Mounting Facilities Parallel To Length: 2.188 Inches Nominal Single Mounting Facility Overall Height: 2.625 Inches Maximum Overall Width: 2.125 Inches Maximum Case Material: Metal Unthreaded Mounting Hole Diameter: 0.219 Inches Nominal Single Mounting Facility Fragility Factor: Moderately Rugged Winding Quantity: 1 Purpose For Which Designed: General Coil Quantity: 1 Winding Dc Resistance Rating: 94.0 Ohms Nominal Single Winding Duty Type: Continuous Arc Quenching Method: Air Mounting Facility Type And Quantity: 2 Unthreaded Hole Single Mounting Facility Storage Type: General Purpose Warehouse Cubic Measure: 15.339 Cubic Inches Mounting Facility Pattern: In-Line Single Mounting Facility Nonpile-Up Main Contact Arrangement: 1 Pole, Single Throw, Normally Open, Double Make, Momentary Action Time Delay: 0.02 Seconds Maximum Fixed Operate Time Time Delay: 0.01 Seconds Maximum Fixed Release Time Operating Voltage Rating And Type At Specified Temp: 28.0 Volts Dc 25 Deg Celsius Single Winding Main Contact Load Current Rating At Maximum Rated Voltage: 25.0 Amperes Dc Lamp Load Main Contact Load Current Rating At Maximum Rated Voltage: 50.0 Amperes Dc Resistive Load Main Contact Load Current Rating At Maximum Rated Voltage: 50.0 Amperes Dc Motor Load Main Contact Load Current Rating At Maximum Rated Voltage: 50.0 Amperes Dc Inductive Load Main Contact Maximum Voltage Rating In Volts: 28.0 Dc Test Data Document: 81349-Mil-R-6106 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.). Terminal Type And Quantity: 4 Threaded Stud All Functions Specification/Standard Data: 96906-Ms24166 Government Standard
