Military Specification M39029/64-369 Contact, Electrical - 100/Pack

Military Specification M39029/64-369 Contact, Electrical - 100/Pack
Military Specification M39029/64-369 Contact, Electrical - 100/Pack
Military Specification M39029/64-369 Contact, Electrical - 100/Pack
Military Specification M39029/64-369 Contact, Electrical - 100/Pack
Our Part #: SGP128750-X100
Manufacture Part #: M39029-64-369
Our Price: $54.00 ($0.54 ea)
Price Per Pack - (Pack = 100 ea)

Bulk Shop & Save

  • 5 - 9 $41.00 ($0.41 ea)
  • 10 + $40.00 ($0.40 ea)

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

NSN
5999-00-411-7645

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
EAR99
Color Family
Gold
Manufacturer P/N
M39029/64-369
Schedule B Code
8538.90.7040
Pack Quantity
100
Ship Dimensions
1 x 0 x 0 inches
Series
M39029
Color
Gold

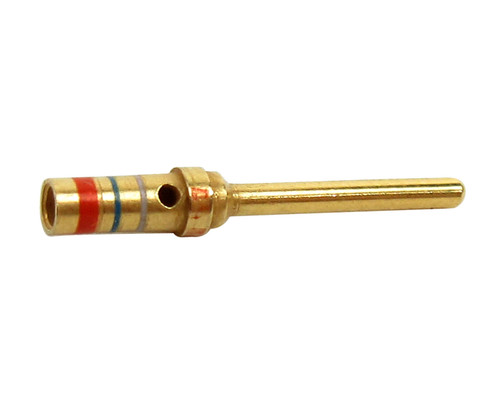

M39029-64-369s are connector pin contacts with the following specifications:
  • Overall Length: 0.549 Inches Nominal
  • Pin Diameter: 0.039 Inches Minimum And 0.041 Inches Maximum
  • Overall Diameter: 0.082 Inches Minimum And 0.085 Inches Maximum
  • Cable Entrance Diameter: 0.043 Inches Minimum And 0.068 Inches Maximum
  • Retention Groove Diameter: 0.065 Inches Minimum And 0.068 Inches Maximum
  • Pin Length: 0.321 Inches Minimum And 0.325 Inches Maximum
  • Current Rating In Amps: 3.0
  • Mounting Method: Force Fit
  • Special Features: Basic Item Identification Number Bin-369
  • Material: Copper Body
  • Material: Copper Contact
  • Precious Material And Location: Contact Surface Gold
  • Precious Material And Weight: 0.005 Gold Grains, Troy
  • Precious Material: Gold
  • Surface Treatment: Gold Contact
  • Style Designator: Pin Contact
  • Test Data Document: 81343-As39029 Specification (Includes Engineering Type Bulletins, Brochures,Etc., That Reflect Specification Type Data In Specification Format; Excludes Commercial Catalogs, Industry Directories, And Similar Trade Publications, Reflecting General Typedata On Certain Environmental And Performance Requirements And Test Conditions That Are Shown As "Typical", "Average", "Nominal", Etc.).
  • Terminal Type And Quantity: 1 Crimp Axially At One End

    • Product Attributes
