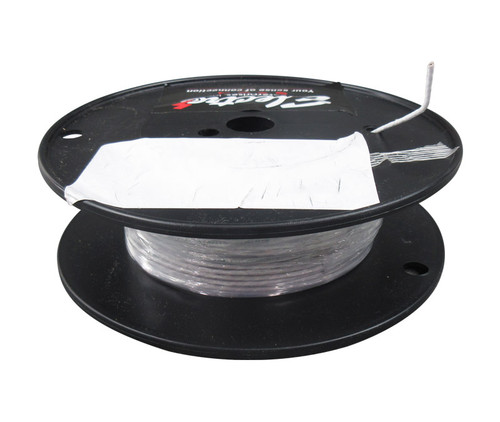

Military Specification M25038/3-20-9 White 20 AWG High-Temperature Abrasion Resistant Wire

Military Specification M25038/3-20-9 White 20 AWG High-Temperature Abrasion Resistant Wire
Military Specification M25038/3-20-9 White 20 AWG High-Temperature Abrasion Resistant Wire
Military Specification M25038/3-20-9 White 20 AWG High-Temperature Abrasion Resistant Wire
Our Part #: SGP126744
Manufacture Part #: M25038-3-20-9
Our Price: $2.88
Price Per Foot

Bulk Shop & Save

  • 100 - 249 $2.44 ft.
  • 250 - 499 $2.37 ft.
  • 500 - 999 $2.30 ft.
  • 1000 + $2.24 ft.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

NSN
6145-01-359-7015

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
Manufacturer P/N
M25038/3-20-9
Pack Quantity
1
Series
M25038/3
  • Cross-Sectional Shape Style: Round
  • Temp Rating: 260.0 Deg Celsius
  • Cross Section Outside Diameter: 0.088 Inches Nominal
  • End Item Identification: Aircraft, B-2 Bomber (Atb); Aircraft, B-1B; Support Equipment (Se), B-2 Bomber; Aircraft(Ac-130H, Mc-130H, Ec-130H, Hc-130)
  • Strand Quantity Per Conductor: 19 Single Conductor
  • Criticality Code Justification: Feat
  • Conductor Form: Stranded Single Conductor
  • Round Conductor Size: 20 Awg Single Conductor
  • Strand Awg Size Per Conductor: 32 Single Conductor
  • Voltage Rating: 600.0 Maximum Root Mean Square (Rms) Operating Voltage Single Conductor
  • Special Features: Weapon System Essential
  • Color: White 4Th Position Tape Single Conductor
  • Material: Plastic Polytetrafluoroethylene 4Th Position Tape Single Conductor
  • Material: Copper Core Conductor Single Conductor
  • Material Document And Classification: Astm B355 Assn Std Single Material Response Core Conductor Single Conductor
  • Surface Treatment: Nickel Core Conductor Single Conductor
  • Surface Treatment Document And Classification: Astm B355 Assn Std Single Treatment Response Core Conductor Single Conductor
