Approvals and Conformities
MIL-SPEC#
MIL-W-22759/11-22-3
SAE Spec#
AS22759/11-22-3
Product Attributes
Country of Origin
United States
Shipping Weight
25 pounds
ECCN
EAR99
Manufacturer P/N
M22759/11-22-3
Schedule B Code
8548.90.0100
Pack Quantity
500
Series
M22759/11
Material
Plastic PTFE

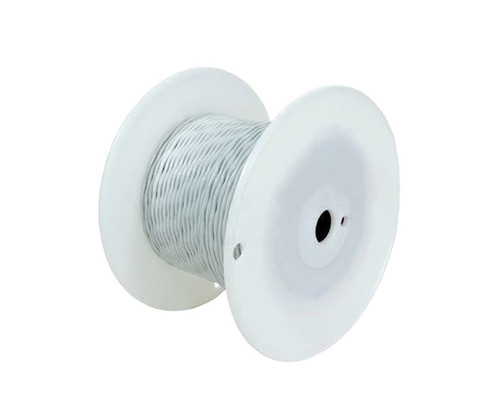

M22759/11 wire uses a Polytetrfluoroehtylene (PTFE) insulation designed for aerospace applications. Ideal where resistance to high temperatures and high reliability are required.
This wire is non-flammable, self-extinguishing, and resists soldering iron contact. It is preferred where smoke emission, current overload conditions, flammability, or mechanical attack may be problems.
M22759/11 wire ranges from 8 to 28 gauge and comes in the following variety of colors: Black -0, Brown -1, Red -2, Orange -3, Yellow -4, Green -5, Blue -6, Violet -7, Grey -8, and White -9. SkyGeek.com only currently supplies White, Red, Black, Yellow, Green, and Blue. Other colors and color combinations might be available by request, contact the Help Center for more information.
Features
- Insulation: Polytetrafluoroethylene (PTFE)
- Conductor: Silver Plated Copper Conductor
- Voltage Rating: 600 Volts
- Temperature: -55°C to +200°C
- Color: Orange
- Gauge (AWG): 22
- Stranding: 19/34
- O.D. Min (Inches): .047
- O.D. Max (Inches): .051
- Resistance @ 20°C OHMS/1000' max: 15.10
- Max Weight - Lbs/1000': 3.44
