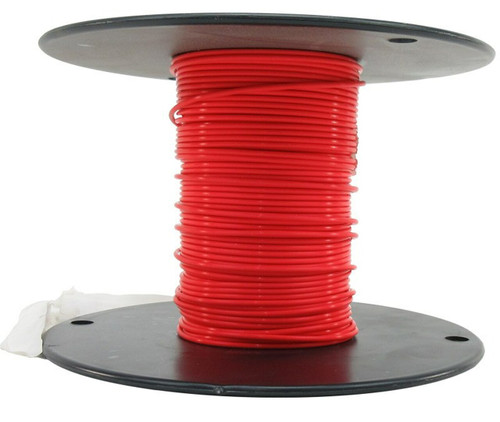

Military Specification M22759/11-10-2 Red 10 AWG PTFE Tapes/Coated Fiberglass Braid Wire

Our Part #: SGP125979
Manufacture Part #: M22759-11-10-2
Our Price: $3.41
Price Per Foot

Bulk Shop & Save

  • 500 - 999 $2.79 in.
  • 1000 - 2499 $2.69 in.
  • 2500 - 4999 $2.60 in.
  • 5000 + $2.52 in.
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Approvals and Conformities

Approvals and Conformities

MIL-SPEC#
MIL-W-22759/11-10-2
SAE Spec#
AS22759/11-10-2

Product Attributes

Country of Origin
United States
Size
10 AWG
Shipping Weight
0.05 pounds
ECCN
EAR99
Color Family
Red
Manufacturer P/N
M22759/11-10-2
Schedule B Code
8548.90.0100
Pack Quantity
1
Series
M22759/11
Color
Red
Material
Plastic PTFE
M22759/11-10-2 wire uses a Polytetrfluoroehtylene (PTFE) insulation designed for aerospace applications. Ideal where resistance to high temperatures and high reliability are required.

This wire is non-flammable, self-extinguishing, and resists soldering iron contact. It is preferred where smoke emission, current overload conditions, flammability, or mechanical attack may be problems.

Features

  • Insulation: Polytetrafluoroethylene (PTFE)
  • Conductor: Silver Plated Copper Conductor
  • Voltage Rating: 600 Volts
  • Temperature: -55°C to +200°C
  • Color: Red
  • Gauge (AWG): 10
  • Stranding: 37/26
  • O.D. Min (Inches): .135
  • O.D. Max (Inches): .143
  • Resistance @ 20°C OHMS/1000’ max: 1.19
  • Max Weight - Lbs/1000': 34.90
