Approvals and Conformities
MIL-SPEC#
MIL-W-22759/16-20-2
SAE Spec#
AS22759/16-20-2
Product Attributes
Country of Origin
United States
Shipping Weight
5 pounds
ECCN
EAR99
Color Family
Red
Manufacturer P/N
M22759/16-20-2
Schedule B Code
8548.90.0100
Pack Quantity
100
Series
M22759/16
Color
Red
Material
Plastic PTFE

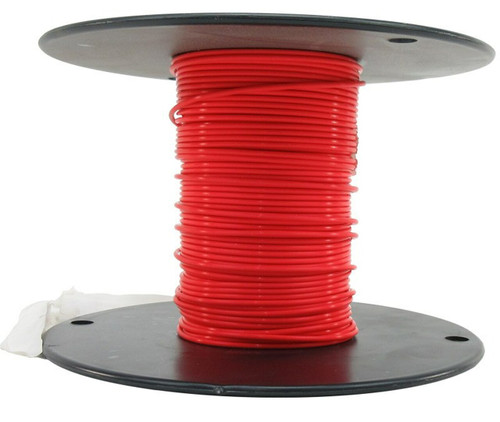

At SkyGeek.com M22759 Tefzel Wire is priced by the Foot and carries a 100' min order quantity.
MIL-W-22759 Tefzel hookup wire has extruded ETFE insulation for aerospace and other applications requiring light weight, tight diameter tolerances, and enhanced mechanical toughness. ETFE insulation also provides exceptional resistance to radiation and chemicals. Available in 9 different colors and gauges 1 to 24 as a continuous length.
Specifications:
- Color: Red
- AWG (Gauge): 20
- Diameter (min-max): 0.058-0.062
- Stranding: 19x32
