Country of Origin
United States
Shipping Weight
0.05 pounds
Manufacturer P/N

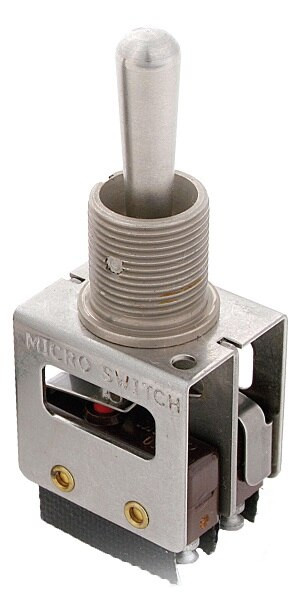

23AT29-S
Schedule B Code
8536.50.9065
Body Style : Bushing Mount Hazardous Locations/Environmental Protection : Corrosion Resistant Overall Length : 0.870 Inches Nominal Overall Height : 2.740 Inches Nominal Overall Width : 0.984 Inches Maximum Bushing Length : 0.470 Inches Nominal Body Length : 0.870 Inches Nominal Body Width : 0.984 Inches Maximum Case Material : Metal Actuator Style : Round Actuator Diameter : 0.240 Inches Nominal Actuator Height : 0.690 Inches Nominal Actuator Position-Action Relationship : Up Position Maintained And Down Position Maintained Maximum Voltage Rating In Volts : 250.0 Ac And 30.0 Dc Mounting Surface To Terminal End Distance : 1.580 Inches Nominal Inclosure Type : Fully Inclosed Mounting Method : Threaded Bushing Thread Quantity Per Inch : 32 Nominal Thread Size : 0.469 Inches Nonpile-Up Contact Arrangement : 3 Pole, Double Throw, Both Positions Maintained Single Switch Unit Contact Load Current Rating At Maximum Rated Voltage : 5.000 Amperes Resistive Dc And 3.000 Amperes Inductive Dc And 24.000 Amperes Lamp Dc And 5.000 Amperes Resistive Ac Precious Material And Location : Contacts Silver Thread Series Designator : Uns Terminal Type And Quantity : 9 Screw
