Approvals and Conformities
NSN
5935-01-265-0333
Alternate PN#s
M85528/2-16A
Product Attributes
Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
EAR99
Manufacturer P/N
FSS1-16
Schedule B Code
8548.90.0100
Pack Quantity
34

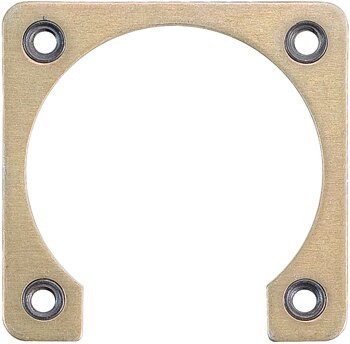

Nut Ring Shell Size 16. Standard 4 Point, 3/4 Circumference Military Equivalent.
- RETAINER MATERIAL
- RETAINER FINISH
- NUT, SELF-LOCKING
- OPTIONAL CORROSION RESISTING STEEL NUTS, CADMIUM PLATED PLUS DRYFILM LUBRICANT COATING AVAILABLE.
- WHEN ORDERING ADD "01" TO PART NUMBER. EXAMPLE: FSS1-801, FSS1-2401.
>- .040 +/-.003 THICK 2024-T3 ALUMINIUM ALLOY. - ALODINE PER MIL-C-5541. - STEEL, CADMIUM PLATED FOLLOWED BY A SOLID DRYFILM LUBRICANT. NUTS MEET PERFORMANCE REQUIREMENTS OF MIL-N-25027 SPECIFICATION.
NOTE: ALL DIMS. ARE SYMMETRICAL ABOUT CENTERLINES.
PART NO. | SHELL SIZE | T THR'D UNJC-3B | A +/-.003 | B +/- .010 | C +.010/-.000 | D | E +.000/-.010 |
FSS1-8 FSS1-10 FSS1-12 FSS1-14 FSS1-16 FSS1-18 FSS1-20 FSS1-22 FSS1-24
| 8 10 12 14 16 18 20 22 24
| 4.40 4.40 4.40 4.40 4.40 4.40 4.40 4.40 6.32
| .594 .719 .812 .906 .969 1.062 1.156 1.250 1.375
| .886 1.019 1.104 1.198 1.280 1.406 1.535 1.665 1.785
| .550 .720 .855 .984 1.094 1.220 1.345 1.478 1.595
| .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .106/.166 .123/.183
| .308 .433 .530 .624 .687 .780 .874 .968 1.031
|
