S65-247-12
Product Attributes
Country of Origin
United States
Shipping Weight
3.53 pounds
ECCN
7A994
Manufacturer P/N
CI-120G/S
Schedule B Code
8529.10.4000
Pack Quantity
1

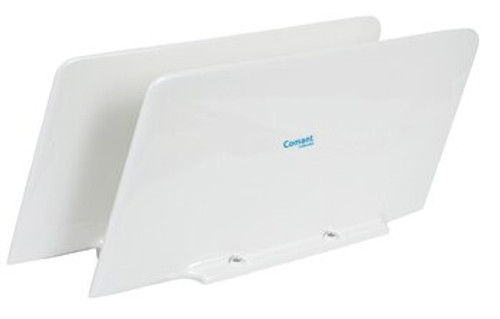

- VOR/GS navigation antenna set provides optimum VOR performance when used for area navigation.
- Antenna system qualified for use on single, twin, jet and helicopter aircraft.
- Also provides glide slope reception capability.
- Complete set includes a pair (2) of blades, each with single BNC connector output, two coax interconnect cables and a signal combiner with single BNC connector output providing for a single cable run to the avionics installation.
- For dual VOR/Single Glide Slope operation with NAV 1 and NAV 2 receivers, use CI-505 diplexer.
- Dual VOR/dual glide slope operation is available when used with the CI-1125 diplexer.
| Electrical | |
| Frequency | 108 - 118 MHz (VOR / LOC) 329 - 335 MHz (Glide Slope) |
| VSWR | 6.0:1 108 - 118 MHz (VOR / LOC) 3.5:1 329 - 335 MHz (Glide Slope) |
| Polarization | Horizontal |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohms Nominal |
| Power | Receive Only |
| Mechanical | |
| Weight | 1.4 lb. Per Blade |
| Height | 6.0 in. Maximum |
| Material | Molded Radome |
| Finish | White Polyurethane Enamel (Standard) |
| Connector | BNC / Single output combiner |
| Gasket | B12014 |
| Environmental | |
| Temperature | -55°C to +85°C |
| Altitude | 50,000 ft. |
| Air Speed | 600 Knots TAS @ 25,000 ft. |
| Federal Specifications | |
| RTCA Environmental | DO-160D |
| Environmental Category | [(F2)X]ACE[(T)E1P] XRXXXSXXXXXXXXXCX |
| FAA TSO | C34e, C36e, C40c |
| RTCA MOPS | DO-192, DO-195, DO-196 |
