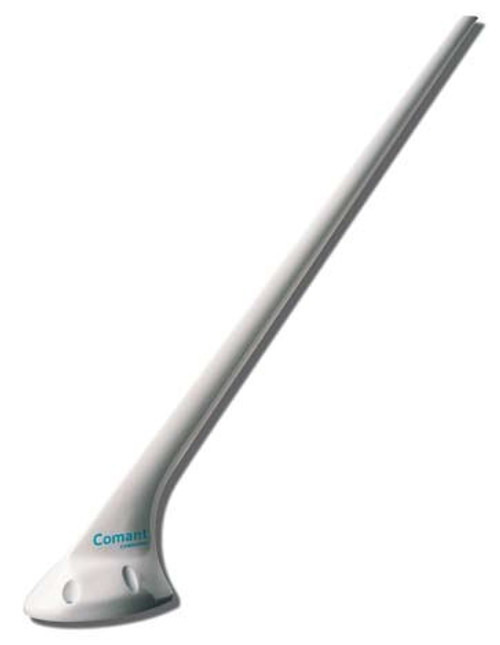

Cobham Comant CI-2480-201 ComDat GPS/VHF Combo Antenna - 17.0db

Cobham Comant CI-2480-201 ComDat GPS/VHF Combo Antenna - 17.0db
Cobham Comant CI-2480-201 ComDat GPS/VHF Combo Antenna - 17.0db
Our Part #: SGP104322
Manufacture Part #: CI-2480-201
Our Price: $970.81
Price Per Each

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

Product Attributes

Country of Origin
United States
Shipping Weight
2 pounds
ECCN
7A994
Manufacturer P/N
CI 2480-201
Schedule B Code
9803.20.0000
Pack Quantity
1

Comant's ComDat dual function single engine antenna for VHF/GPS. Our patented technology provides 80 dB of VHF harmonic suppression allowing Comant to offer VHF and GPS in one radome without in-line filters.

Designed as a drop-in replacement for common single engine teardrop footprint.

Compatible with Garmin 17 dB GPS panel mount receiver systems.
Not compatible with most portable GPS receiver systems.

Applications
Single engine piston aircraft for applications of this antenna design. Consult your FBO or installation shop for best application information.

Frequencies Covered
VHF 118-137 MHz GPS 1575.42 MHz / 17.0 dB Gain
VHF Specifications
  • Frequency : 118-137 MHz
  • VSWR : 2.5:1 Maximum
  • Polarization : Vertical
  • Radiation Pattern : Omni Directional
  • Impedence : 50 Ohms
  • Power Rating : 50 Watts
GPS Preamplifier Specs
  • Frequency : 1575.42 +/-3 MHz
  • VSWR : 2.0:1 Max.
  • Polarization : RHCP
  • Radiation Pattern : Hemispherical
  • Impedance : 50 Ohms
  • Gain : 17.0 +/-3 dB
  • DC Voltage : +5 +-0.5 Vdc
  • DC Curr. Min/Max : 20 mA Maximum
  • Noise : 3.0 dB Max
Mechanical / Environmental
  • Weight : 0.6 lb Maximum
  • RTCA Env. / TSO : DO 160D / C37d, C38d, C129
  • Connectors : VHF - BNC / GPS - TNC
