Product Attributes
Country of Origin
United States
Shipping Weight
1.25 pounds
ECCN
7A994
Manufacturer P/N
CI420-220
Schedule B Code
9803.20.0000
Pack Quantity
1
Ship Dimensions
6 x 3 x 2 inches

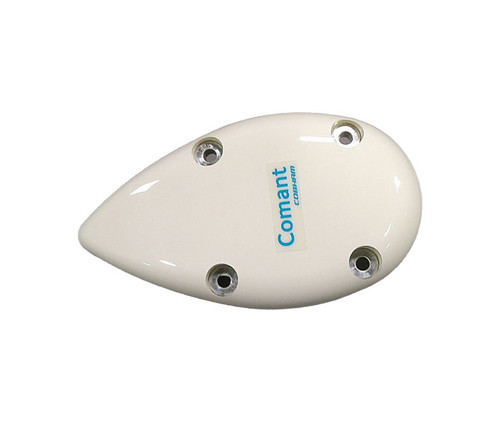

The CI 420-220 provides GPS for 26.5dB systems such as Honeywell?, in the popular "teardrop" shape. Patented design offers GPS performance for Bendix King, Garmin™ T (formerly UPS), L3 and other similar systems that require 26.5dB gain.
All-new construction and design offers the latest in GPS antenna and amplifier technology. WAAS ready, this antenna has been tested under the most rigorous conditions as outlined by RTCA DO-160D.
Matches footprint of Honeywells KA 92 and Comants CI 405 Series, which this design replaces.
font color="#FFFFFF" face="Verdana" size="2">MODEL CI 420-220 ComDat GPS | |
| PS Passive Characteristics | |
| Frequency | 1575.42 MHz |
| VSWR | 1.5:1 Maximum |
| Polarization | RHCP |
| Radiation Pattern | Hemispherical |
| Impedance | 50 Ohms Output (Nominal) |
| Gain @ 1575.42 MHz | 26.5 to 31.5dB Maximum |
| DC Voltage | 4 to 24 VDC |
| DC Current | 25mA Minimum / 40mA Maximum |
| Noise Figure | 3.8dB Maximum |
| Selectivity | -35dB Minimum SATCOM 1626.5 |
| Burnout Protection | 30dBm / 1.0 CW Unmodulated |
| echanical / Environmental | |
| Speed / Altitude | 330 KIAS Maximum @ Sea Level |
| Weight | 4.2 Oz. Maximum |
| RTCA Environmental | DO-160D |
| Environmental Cat. | F2XACBS(L)U(F,F1)T(C,C1,R)XRF DXSXXXXXXXXXXXX1BCA |
| FAA TSO | C144 |
| RTCA MOPS | DO-228 |
| span >ORDER OPTIONS | |
| onnector | |
| GPS Port | TNC |
| olor | |
| Color | White |
