Product Attributes
Country of Origin
United States
Shipping Weight
1.08 pounds
ECCN
7A994
Manufacturer P/N
CI292-3
Schedule B Code
9803.20.0000
Pack Quantity
1
Ship Dimensions
25 x 4 x 3 inches

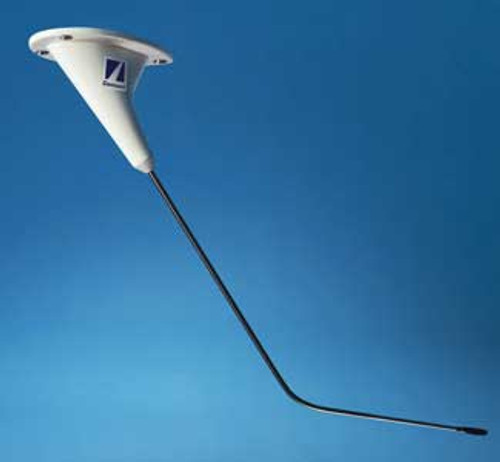

Designed to provide 2.5:1 VSWR or better over a bandwidth of 138-174 MHz. Features a high-strength diecast 3-hole aluminum base. Radiating element is a bent-whip tapered stainless steel rod suitable for bottom mounting. The CI 292-3 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements.
| MODEL CI 292-3 FM Extended Band Bent Whip | |
| Electrical | |
| Frequency | 138 to 174 MHz |
| VSWR | 2.5:1 Maximum |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohms Nominal |
| Power Rating | 50 Watts |
| Mechanical | |
| Weight | 0.5 lb. Maximum |
| Height | 9.50 In. Maximum |
| Material | Die Cast housing / Stainless steel whip |
| Finish | Polyurethane Enamel |
| Connector | BNC (female) |
| Environmental | |
| Temperature | -55ºC to +70ºC |
| Altitude | 50,000 ft. |
| Air Speed | 250 knots TAS @ 25,000 ft. |
| Federal Specifications | |
| RTCA Environment | DO-160D |
| Environmental Category | [D2X]ACB[R(C,C1)U(F,F1)] XWFDXSXXXXX[XX]X[XXXX]XAX |
| FAA TSO | C37d, C38d |
| RTCA MOPS | DO-186A |
| Order Options | |
| Connector | |
| BNC | Standard |
| Color | |
| White | Standard |
| Gasket | |
| B29205 | |
