Product Attributes
Country of Origin
United States
Shipping Weight
1.82 pounds
ECCN
7A994
Manufacturer P/N
CI138
Schedule B Code
9803.20.0000
Pack Quantity
1

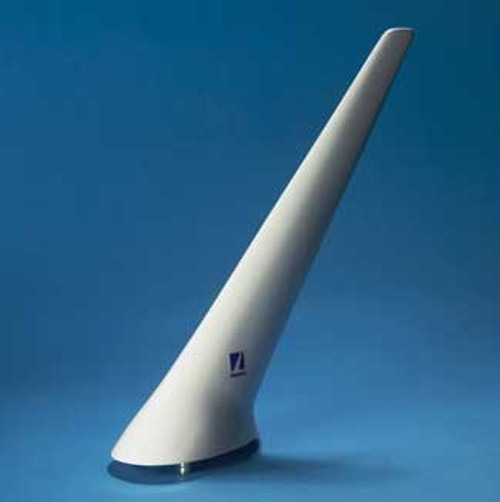

Identical to the CI 119 with the exception of the mounting hole pattern and RF connector location which are compatible with Beechcraft mounting. RF connector is offset from the centerline of the antenna. The CI 138 has been re-tested and upgraded to the new RTCA DO-160D environmental requirements and offers the 118 to 137 MHz frequency associated with DO-186A MOPS.
| MODEL CI 138 VHF Blade Antenna | |
| Electrical | |
| Frequency | 118 - 137 MHz |
| VSWR | 2.5:1 Maximum |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohms |
| Power | 25 Watts |
| Mechanical | |
| Weight | 1.0 lbs. Maximum |
| Height | 13.00 in. Maximum |
| Material | Valox 420 |
| Finish | Polyurethane Enamel |
| Connector | BNC (female) |
| Environmental | |
| Temperature | -55ºC to +85ºC |
| Altitude | 50,000 ft. |
| Air Speed | 350 Knots TAS @ 25,000 ft. |
| Federal Specifications | |
| RTCA Environmental | DO-160D |
| Environmental Category
| [D2X]ACB[R(C,C1)U(F,F1) XWFDXSXXXXX[XX]X[XXXX]XAX |
| FAA TSO | C37d, C38d |
| RTCA MOPS | DO-186A |
| ORDER OPTIONS | |
| Connector | |
| BNC | Standard |
| Color | |
| White | Standard |
| Gasket | |
| C13804 Cork Neoprene - Standard | |
