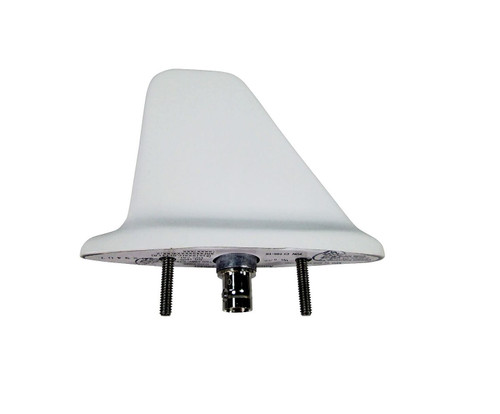

Broadband and rugged antenna designed for DME or transponder use. The CI 105-16 was designed specifically for the Honeywell Bendix-King™ KA60. This unit offers the extended length, two stud mounting found on the KA60. Tested to the tougher DO-160D environmental requirements, this antenna offers the best in ruggedness and performance.
| MODEL CI 105-16 DME / Transponder | |
| Electrical | |
| Frequency | 960 to 1220 MHz 1030 to 1090 MHz |
| VSWR | 1.5:1 960 to 1220 MHz 1.3:1 1030 to 1090 MHz |
| Polarization | Vertical |
| Radiation Pattern | Equivalent of ? / 4 Stub |
| Impedance RF | 50 Ohms |
| Resistance DC | Open Circuit |
| Power RF | 2.5 KW Peak |
| Mechanical | |
| Weight | 0.2 lb. |
| Height | 3.23 in. |
| Material | Molded Radome |
| Finish | White Federal Standard 595 |
| Connector | BNC (female) |
| Environmental | |
| Temperature | -55ºC to +85ºC |
| Altitude | 70,000 ft. |
| Air Speed | 400 Knots TAS at 25,000 ft. |
| Federal Specifications | |
| RTCA Environmental | DO-160D |
| Environmental Category | E1-XXC,C1,F,F1,RXRFXXSXX XXXXXXXXXXXXXXXX |
| FAA TSO | C66c, C74d |
| RTCA MOPS | DO-144 DO-189 |
| ORDER OPTIONS | |
| Connector | |
| BNC | Standard |
| Color | |
| White | Standard |
