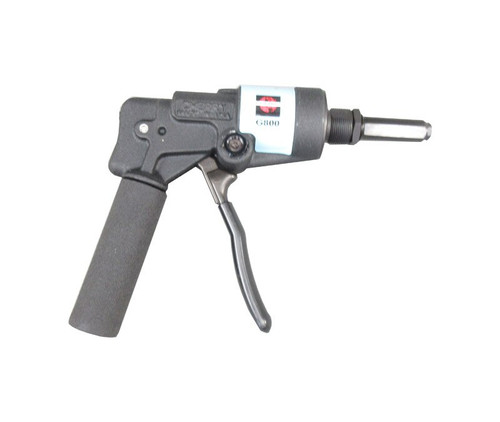

Cherry Aerospace G800 CherryMAX® Ergonomic Hand-Powered Riveter (Includes Pulling Head)

Our Part #: SGP112447
Manufacture Part #: G800
Our Price: $969.52 (Each)

Bulk Shop & Save

  • 6 - 11 $957.84 (Each)
  • 12 + $946.43 (Each)
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Approvals and Conformities

Approvals and Conformities

Product Attributes

Country of Origin
United States
Shipping Weight
2.75 pounds
ECCN
EAR99
Manufacturer P/N
G800
Schedule B Code
8207.90.7570
Pack Quantity
1
Ship Dimensions
12 x 8 x 4 inches
Weight
1.7 lbs.
This ergonomic and lightweight tool is capable of installing 3/32" through 1/4" single action aerospace fasteners while the exceptional power multiplication provides over 5,000 lbs. of pulling force. Despite weighing less than 2 lbs., this hand-powered riveter is a robust tool ideal for use in rugged repair facilities and field repairs. It features a high strength steel CherryMax mounting system compatible with a variety of pulling heads like H782, H781, H753A-456, and can install a wide variety of blind fastener styles, diameters, head configurations, and material combinations.

Features

The patented design of the G800 provides the following benefits:
  • Over 5000 pounds of power
  • Minimum of 3/4" stroke
  • Adjustable lever for all hand sizes
  • Fluid level indicator
  • Cushioned grip
  • Adjustable pressure - no longer optional
  • "EZ" bleed system - takes away the need for pressure pumps and syringes
  • Accepts Cherrymax mount pulling heads - with nose piece interchange system
  • Accepts Cherry adapters without the difficulty of a large compression spring, as in older designs
  • Backed by Cherry with over 50 years of design and manufacturing experience in riveting tool systems
  • Stroke: 3/4" min.
  • Pulling Force (in lbs., adjustable): 500 lbs. to over 4500 lbs.
  • Power Source: Hand Pump
  • Weight (no pulling head): 1.7 lbs.
  • Overall Height: 6.4" (162.5 mm)
  • Overall Length: 7.75" (196.8 mm)
