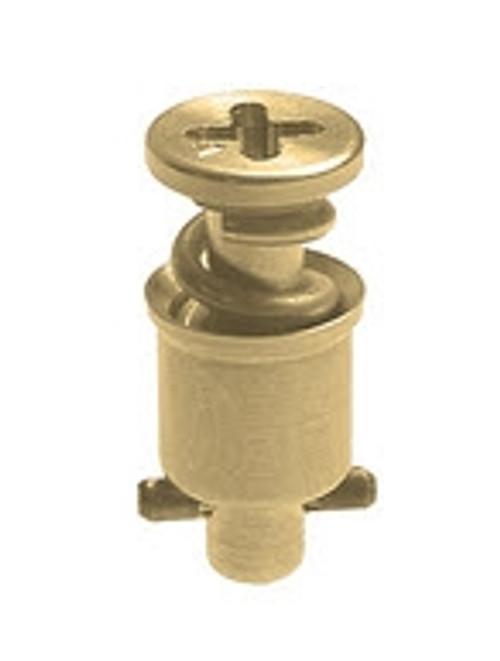

Camloc® 40S5-7 Steel Stud Assembly, Turnlock Fastener

Camloc® 40S5-7 Steel Stud Assembly, Turnlock Fastener
Our Part #: SGP40444
Manufacture Part #: 40S5-7
Our Price: $6.49 (Each)

Bulk Shop & Save

  • 25 - 49 $6.40 (Each)
  • 50 - 74 $6.32 (Each)
  • 75 - 99 $6.23 (Each)
  • 100 + $6.15 (Each)
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

Product Attributes

Country of Origin
United States
Size
.830"
Shipping Weight
0.001 pounds
ECCN
9A991.d
Manufacturer P/N
40S5-7
Schedule B Code
9607.19.0000
Pack Quantity
1
Stud Length
.830"
Total Grip
.231"-.260"
Series
40S5
Material
Alloy Steel
Alcoa Camloc 40S5-7 Steel Stud Assembly, Turnlock Fastener

Features

  • Product Type: Stud
  • Fastener Series: 4002
  • Stud Size: 7
  • Stud Type: Heavy Duty
  • Head Type: Phillips
  • Head Shape: Flat
  • Body Material: Zinc Plated Steel
  • Total Stud Length: .830in [21.08mm]
  • Working Strength: 700 lbs
  • Ultimate Tensile Strength: 1050 lbs

  • Total Material Thickness (w/ Fixed Depth Receptacle)
    w/ rigid receptacle
  • countersunk flush grommet: .231-.260in
  • low profile grommet: .201-.230in
    w/ floating receptacle
  • countersunk flush grommet: .201-.230in
  • low profile grommet: .171-.200in

  • Total Material Thickness (w/ Adjustable Depth Receptacle)
    w/ countersunk flush grommet: .190-.490in
    w/ low profile grommet: .160-.460in

    • Product Attributes
