Camloc® 4002-NS Stainless Steel Eyelet, Turnlock Fastener

Camloc® 4002-NS Stainless Steel Eyelet, Turnlock Fastener
Camloc® 4002-NS Stainless Steel Eyelet, Turnlock Fastener
Our Part #: SGP38895
Manufacture Part #: 4002-NS
Our Price: $2.92
Price Per Each

Bulk Shop & Save

  • 25 - 49 $2.84 ea.
  • 50 - 74 $2.77 ea.
  • 75 - 99 $2.70 ea.
  • 100 + $2.63 ea.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

NSN
5325-00-369-2721

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
9A991.d
Manufacturer P/N
4002-NS
Schedule B Code
7318290000
Pack Quantity
1

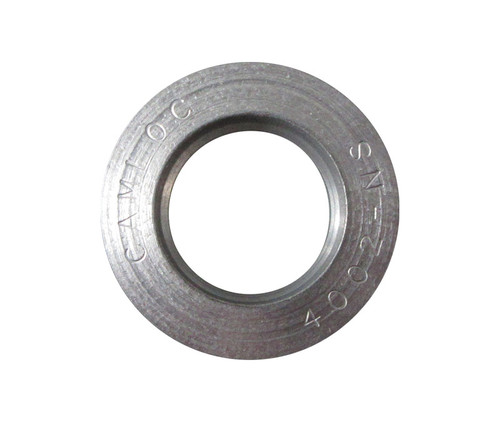

The Camloc 4002NS Grommet is a Camloc plus flush grommet for the 4002 series of fasteners. Designed to be installed in the outer panel and acts as a retainer for the stud, as well as reducing wear in the secured panel. Grommet has a low profile head that protrudes approximately 0.025" from the outer fastened panel, and can be installed in panels with a thickness of .026" to .064". Requires a minimum total thickness(both panels) of .091". Made from stainless steel.
  • Turnlock Eyelet Style: Eyelet
  • Eyelet Height: 0.193 Inches Minimum And 0.201 Inches Maximum
  • Distance Between Flanges: 0.114 Inches Minimum And 0.122 Inches Maximum
  • Smallest Outside Diameter: 0.467 Inches Minimum And 0.473 Inches Maximum
  • Largest Outside Diameter: 0.617 Inches Minimum And 0.625 Inches Maximum
  • Eyelet Inside Diameter: 0.351 Inches Minimum And 0.357 Inches Maximum
  • Material: Steel Overall
  • Surface Treatment: Passivate Overall

    • Product Attributes

    Approvals and Conformities

    NSN
    5325-00-369-2721

    Product Attributes

    Country of Origin
    United States
    Shipping Weight
    0.001 pounds
    ECCN
    9A991.d
    Manufacturer P/N
    4002-NS
    Schedule B Code
    7318290000
    Pack Quantity
    1
    The Camloc 4002NS Grommet is a Camloc plus flush grommet for the 4002 series of fasteners. Designed to be installed in the outer panel and acts as a retainer for the stud, as well as reducing wear in the secured panel. Grommet has a low profile head that protrudes approximately 0.025" from the outer fastened panel, and can be installed in panels with a thickness of .026" to .064". Requires a minimum total thickness(both panels) of .091". Made from stainless steel.
  • Turnlock Eyelet Style: Eyelet
  • Eyelet Height: 0.193 Inches Minimum And 0.201 Inches Maximum
  • Distance Between Flanges: 0.114 Inches Minimum And 0.122 Inches Maximum
  • Smallest Outside Diameter: 0.467 Inches Minimum And 0.473 Inches Maximum
  • Largest Outside Diameter: 0.617 Inches Minimum And 0.625 Inches Maximum
  • Eyelet Inside Diameter: 0.351 Inches Minimum And 0.357 Inches Maximum
  • Material: Steel Overall
  • Surface Treatment: Passivate Overall
