Camloc® 4002-N Steel Eyelet, Turnlock Fastener

Camloc® 4002-N Steel Eyelet, Turnlock Fastener
Camloc® 4002-N Steel Eyelet, Turnlock Fastener
Our Part #: SGP38893
Manufacture Part #: 4002N
Our Price: $7.93
Price Per Each

Bulk Shop & Save

  • 25 - 49 $7.70 ea.
  • 50 - 74 $7.48 ea.
  • 75 - 99 $7.28 ea.
  • 100 + $7.08 ea.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

NSN
5325-00-282-2045
Pilatus PN/Spec#
944.48.77.950
Boeing PN/Spec#
BACG20X3

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
9A991.d
Manufacturer P/N
4002-N
Schedule B Code
8803.30.0010
Pack Quantity
1
Series
4002
Material
Zinc Plated Steel

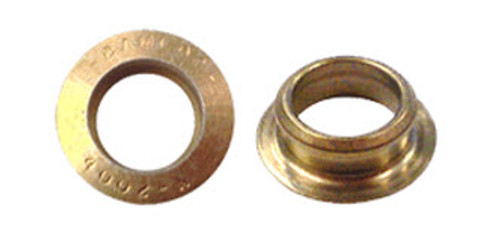

Camloc's 400-N is a grommet with a flush head. It is made of steel and has a zinc-plated, yellow chromate finish. This particular grommet has a maximum standard panel thickness of .065 inches. Note: this grommet requires a retaining ring. Check the features for more details.
  • Turnlock Eyelet Style: Eyelet
  • Eyelet Height: 0.193 Inches Minimum And 0.201 Inches Maximum
  • Distance Between Flanges: 0.114 Inches Minimum And 0.122 Inches Maximum
  • Smallest Outside Diameter: 0.467 Inches Minimum And 0.473 Inches Maximum
  • Largest Outside Diameter: 0.617 Inches Minimum And 0.625 Inches Maximum
  • Criticality Code Justification: Feat
  • Eyelet Inside Diameter: 0.351 Inches Minimum And 0.357 Inches Maximum
  • Special Features: Flight Safety Critical
  • Material: Steel Overall
  • Surface Treatment: Cadmium Overall Or Zinc Overall And Chromate Overall

    • Product Attributes
