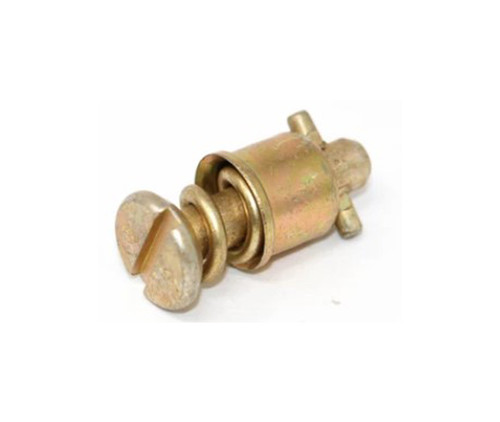

Camloc® 4002-6 Steel Slotted Stud Assembly, Turnlock Fastener

Camloc® 4002-6 Steel Slotted Stud Assembly, Turnlock Fastener
Camloc® 4002-6 Steel Slotted Stud Assembly, Turnlock Fastener
Our Part #: SGP38865
Manufacture Part #: 4002-6
Our Price: $10.92
Price Per Each

Bulk Shop & Save

  • 25 - 49 $10.60 ea.
  • 50 - 74 $10.30 ea.
  • 75 - 99 $10.02 ea.
  • 100 + $9.75 ea.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
9A991.d
Manufacturer P/N
4002-6
Schedule B Code
9607.19.0000
Pack Quantity
1
Stud Length
.800"
Stud Size
6
Head Type
Slotted
Series
4002
Material
Zinc Plated Steel
The Camloc 4002-6 Stud is a heavy duty, slotted recess head stud from the Camloc 4002 series of fasteners. Made from steel with zinc plating. The heavy-duty 4002 series Camlocs are rated for 700 pounds working strength (1050 pounds ultimate strength). They are designed to be used with a metal grommet to help spread the attachment forces. The slot head allows quick use with a standard flat blade screwdriver (no special tools needed).

Features

  • Product Type: Stud
  • Fastener Series: 4002
  • Stud Size: 6
  • Stud Type: Heavy Duty
  • Head Type: Slotted
  • Head Shape: Flat
  • Body Material: Zinc Plated Steel
  • Total Stud Length: .800in [20.32mm]
  • Working Strength: 700 lbs
  • Ultimate Tensile Strength: 1050 lbs

  • Total Material Thickness (w/ Fixed Depth Receptacle)
    w/ rigid receptacle
  • countersunk flush grommet: .201-.230in
  • low profile grommet: .171-.200in
    w/ floating receptacle
  • countersunk flush grommet: .171-.200in
  • low profile grommet: .141-170in

  • Total Material Thickness (w/ Adjustable Depth Receptacle)
    w/ countersunk flush grommet: .160-.460in
    w/ low profile grommet: .130-.430in

    • Product Attributes
