Camloc® 2600-7W Steel Wing Head Stud Assembly, Turnlock Fastener

Camloc® 2600-7W Steel Wing Head Stud Assembly, Turnlock Fastener
Camloc® 2600-7W Steel Wing Head Stud Assembly, Turnlock Fastener
Our Part #: SGP26726
Manufacture Part #: 2600-7W
Our Price: $43.41
Price Per Each

Bulk Shop & Save

  • 25 - 49 $42.15 ea.
  • 50 - 74 $40.96 ea.
  • 75 - 99 $39.84 ea.
  • 100 + $38.78 ea.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

NSN
5325-00-298-7005

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
9A991.d
Manufacturer P/N
2600-7W
Schedule B Code
9607.19.0000
Pack Quantity
1
Stud Length
.940"
Stud Size
7W
Head Type
Wing Head
Series
2600
Material
Alloy Steel

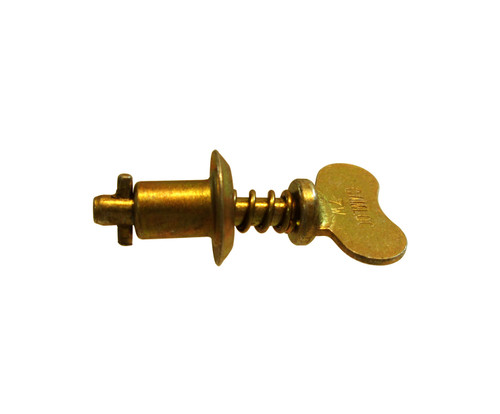

The Camloc 2600-7W Stud is a wing head, fillister head fastener stud from the Camloc 2600 series. Has a length of .940" and a total grip thickness of .210"-.239". These light-duty Camloc studs are rated for 200 pounds working strength (ultimate tensile strength 300 pounds). The wing head allows quick fastening by hand, without any tools needed. Made from zinc plated steel.

Features

  • Product Type: Stud
  • Fastener Series: 2600
  • Stud Size: 7
  • Stud Type: Low Profile
  • Head Type: Wing head
  • Head Shape: Fillister
  • Body Material: Zinc Plated Steel
  • Total Stud Length: .940in [23.87mm]
  • Total Material Thickness
    w/ fixed receptacle: .210-.239in [5.33-6.07mm]
    w/ adjustable receptacle: .190-.550in [4.82-13.97mm]
  • Working Strength: 200 lbs
  • Ultimate Tensile Strength: 300 lbs
