Approvals and Conformities
NSN
5325-00-298-6999
Lockheed PN/Spec#
10630050-35
Product Attributes
Country of Origin
United States
Shipping Weight
0.005 pounds
ECCN
9A991.d
Manufacturer P/N
2600-15
Schedule B Code
9607.19.0000
Pack Quantity
5
Stud Length
1.18"
Stud Size
15
Head Type
Slotted
Series
2600
Material
Alloy Steel

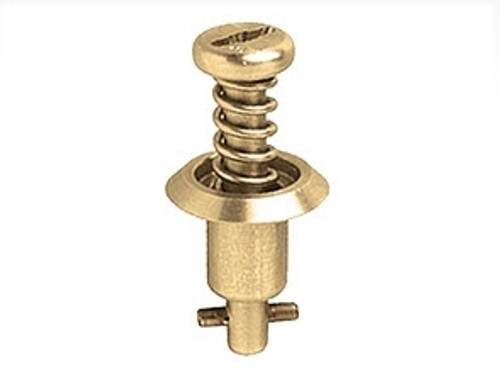

The Camloc 2600-15 Stud is a slotted recess, fillister head fastener stud from the Camloc 2600 series. Has a length of 1.180" and a total grip thickness of .450"-.479". These light-duty Camloc studs are rated for 200 pounds working strength (ultimate tensile strength 300 pounds). The slot head allows use with standard flat-blade screwdrivers (no special tools needed). Made from zinc plated steel.
Features
w/ adjustable receptacle: .430-.790in [10.92-20.06mm]
