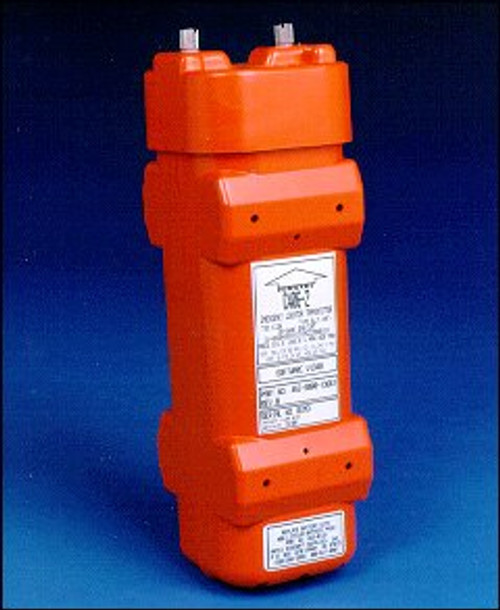

ACR Artex™ 455-5016 Model C406-1 HM Helicopter 406 MHz Emergency Locator Transmitter with Rod Antenna

The Artex 455-5016 C406-1 HM ELT transmits on all 3 emergency frequencies (121.5/243.0 and 406 MHz). The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 and 243.0 MHz. It also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time.

The C406-1 HM has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests. The C406-1 HM is available for use with Artex's low cost whip antennas, rod antenna or a blade antenna. The C406-1 HM may be interfaced with the optional Artex ELT/NAV Interface enabling latitude and longitude data to be transmitted as part of the 406 MHz message. The C406-1 HM uses a single coax cable to accommodate all three frequencies. The C406-1 HM ELT is available for fixed wing with a single-directional G-Switch and helicopter (HM) applications with a multi-axis G-Switch. Immediate Search and Rescue response with completed registration.

Comes with 110-338 Rod Antenna and 345-6196 Switch.
