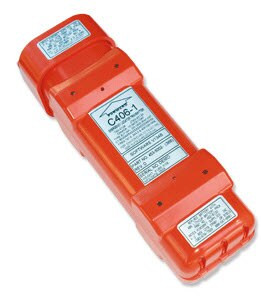

ACR Artex™ 453-5002 Model C406-1 406 MHz Emergency Locator Transmitter

Our Part #: SGP42954
Manufacture Part #: 453-5002
Our Price: $5,047.69
Price Per Each
Hazmat Order iconHAZMAT ORDERS
Safety Data Sheet download icon

SkyGeek Shelf-Life Policy

Warning: This product may contain a chemical known by the State of California to cause health issues. Details found here www.p65warnings.ca.gov

UN Number: UN3090

UN Class: 9

World wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Approvals and Conformities

Approvals and Conformities

Product Attributes

Country of Origin
United States
Shipping Weight
5 pounds
ECCN
7A994
Manufacturer P/N
453-5002
Schedule B Code
8529.90.4740
Pack Quantity
1
The Artex 453-5002 C406-1 transmits on all 3 emergency frequencies (121.5/243.0 and 406 MHz). The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 and 243.0 MHz. It also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time.

The C406-1 has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests. The C406-1 is available for use with Artex's low cost whip antennas, rod antenna or a blade antenna. The C406-1 may be interfaced with the optional Artex ELT/NAV Interface enabling latitude and longitude data to be transmitted as part of the 406 MHz message. The C406-1 uses a single coax cable to accommodate all three frequencies. The C406-1 ELT is available for fixed wing with a single-directional G-Switch and helicopter (HM) applications with a multi-axis G-Switch.

Features

  • Model: C406-1
  • Antenna Options Available:
    110-340 Blade
    110-338 Rod
  • Operating Frequencies: 406 MHz, 121.5 & 243. MHz +/- 0.005% (A3X)
  • Output Power:
    406 MHz: 5 W +/- 2 dB (520 ms / 50 sec) for 24 hours @ -20°C
    121.5/243.0 MHz: 100 mW minimum (+20 dBm) for 50 hours @ -20°C
  • Output Connector: BNC Female (121.5/243.0/406 MHz)
  • Activation:
    Automatic by 4.5 feet per second (2.3 G) Primary G-Switch
    or Manual Activation
  • Battery: 5 year Lithium (LiMnO2, solid cathode)
  • Temperature Certified to:
    Operating: -20°C to +55°C
    Storage: -55°C to +85°C
  • Self Test:
    G-Switch Enabled
    406 MHz Power
    Antenna/Coax Connection
    Position Data Present
    Low Battery
  • Remote Switch: ON/ARM
  • Weights (with tray):
    ELT Transmitter: 3 lb 5.8 oz Maximum (1.53 kg)
    Mounting Tray: 7 oz (200 g)
    Total Weight: 4 lb 11 oz (2.02 kg)
  • Measurements (with mounting hardware):
    11.74” (298 mm)L
    3.9” (99 mm)H
    3.82” (97 mm)W

  • Certifications
    TSO C126
    ETSO 2C126
    Cospas/Sarsat Approved
    Transport & Industry Canada Approved

    Downloads

    download icon Safety Data Sheet
