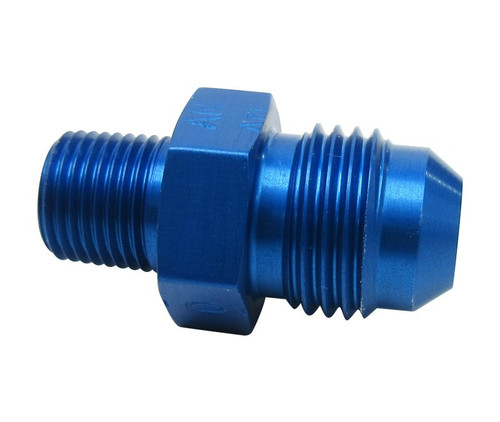

Aeronautical Standard AN816-6-2D Aluminum Pipe to Tube Straight Adapter

Our Part #: SGP90568
Manufacture Part #: AN816-6-2D
Our Price: $5.97 (Each)
Sale Price: $2.47
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Approvals and Conformities

Approvals and Conformities

NSN
4730-00-240-5904
MIL-SPEC#
MIL-F-5509
Pilatus PN/Spec#
946.20.85.209
SAE Spec#
AS5194D0602

Product Attributes

Country of Origin
United States
Shipping Weight
0.03 pounds
ECCN
9A991
Color Family
Blue
Manufacturer P/N
AN816-6-2D
Schedule B Code
7307.99.4000
Pack Quantity
1
Series
AN816
Tube Outer Diameter
3/8"
Pipe Thread
1/8"
Color
Blue
Material
Aluminum Alloy
  • Nominal Pipe Size Accommodated: 0.125 Inches 2Nd End
  • Thread Class: 3A 2Nd End
  • End Item Identification: Grumman A-10 Acft
  • Connection Style: Plain (Pipe) 1St End
  • Connection Style: Flared W/ Gasket Seal (Boss) 2Nd End
  • Connection Type: Threaded External Pipe 1St End
  • Connection Type: Threaded External Boss 2Nd End
  • Nominal Thread Size: 0.562 Inches 2Nd End
  • Nominal Thread Size: 0.125 Inches 1St End
  • Criticality Code Justification: Feat
  • Nominal Overall Length: 1.187 Inches
  • Special Features: Weapon System Essential. Features - Center Wrenching Facility.
  • Material: Aluminum Alloy Overall
  • Surface Treatment: Anodize Overall
  • Surface Treatment Document And Classification: Mil-A-8625 Mil Spec Single Treatment Response Overall
  • Thread Series Designator: Anpt 1St End
  • Thread Series Designator: Unjf 2Nd End
  • Specification/Standard Data: 88044-An816 Government Standard And 81343-As4842/1 Professional/Industrial Association Standard
