Aeronautical Standard AN23-10A Steel Undrilled Shank Bolt, Clevis
PART #:
SGP89108
MFR PART #:
AN23-10A
Regular Price:
Our Price:
Our Price:
Sale Price:
$1.19
Adding to cart… The item has been added
Adding to cart… The item has been added
Aeronautical Standard AN23-11 Steel Drilled Shank Bolt, Clevis
PART #:
SGP89109
MFR PART #:
AN23-11
Regular Price:
Our Price:
Our Price:
Sale Price:
$3.80
Adding to cart… The item has been added
Adding to cart… The item has been added
Aeronautical Standard AN23-12 Steel Drilled Shank Bolt, Clevis
PART #:
SGP89111
MFR PART #:
AN23-12
Regular Price:
Our Price:
Our Price:
Sale Price:
$3.09
Adding to cart… The item has been added
Adding to cart… The item has been added
Aeronautical Standard AN23-14A Steel Undrilled Shank Bolt, Clevis - 10/Pack
PART #:
SGP89116-X10
MFR PART #:
AN23-14A
Regular Price:
Our Price:
Our Price:
Sale Price:
$8.10
Adding to cart… The item has been added
Adding to cart… The item has been added
Aeronautical Standard AN23-15A Steel Undrilled Shank Bolt, Clevis
PART #:
SGP89118
MFR PART #:
AN23-15A
Regular Price:
Our Price:
Our Price:
Sale Price:
$2.21
Adding to cart… The item has been added
Adding to cart… The item has been added
Aeronautical Standard AN23-16 Steel Drilled Shank Bolt, Clevis
PART #:
SGP89119
MFR PART #:
AN23-16
Regular Price:
Our Price:
Our Price:
Sale Price:
$1.34
Adding to cart… The item has been added
Adding to cart… The item has been added
Aeronautical Standard AN23-17 Steel Drilled Shank Bolt, Clevis - 50/Pack
PART #:
SGP89121-X50
MFR PART #:
AN23-17
Regular Price:
Our Price:
Our Price:
Sale Price:
$111.00
Adding to cart… The item has been added
Adding to cart… The item has been added
Aeronautical Standard AN23-19A Steel Undrilled Shank Bolt, Clevis
PART #:
SGP89126
MFR PART #:
AN23-19A
Regular Price:
Our Price:
Our Price:
Sale Price:
$2.85
Adding to cart… The item has been added
Adding to cart… The item has been added
Aeronautical Standard AN23-20 Steel Drilled Shank Bolt, Clevis
PART #:
SGP89127
MFR PART #:
AN23-20
Regular Price:
Our Price:
Our Price:
Sale Price:
$8.09
Adding to cart… The item has been added
Adding to cart… The item has been added
Aeronautical Standard AN23-21A Steel Undrilled Shank Bolt, Clevis
PART #:
SGP89130
MFR PART #:
AN23-21A
Regular Price:
Our Price:
Our Price:
Sale Price:
$2.54
Adding to cart… The item has been added
Adding to cart… The item has been added
Approvals and Conformities
NSN
5310-00-530-3515
MIL-SPEC#
AN23
Alternate PN#s
400 673
Product Attributes
Country of Origin
United States
Shipping Weight
0.01 pounds
ECCN
EAR99
Color Family
Gold
Manufacturer P/N
AN23-11
Schedule B Code
7318.15.2000
Pack Quantity
1
Series
AN23
Length
23/32
Grip
3/8
Shank
Drilled
Head
Undrilled
Color
Gold
Material
Cadmium Steel

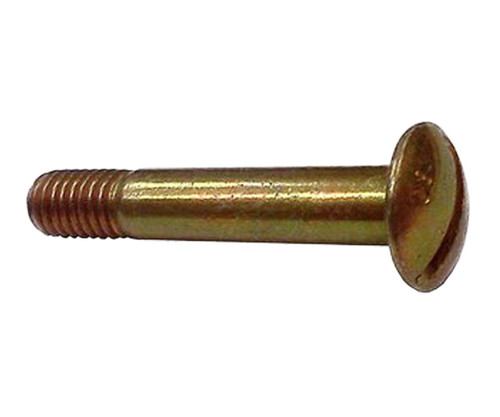

Air Force-Navy AN23s are clevis bolts made of steel with drilled shanks and a cadmium surface treatment. More specs can be found below.
- Material: Steel (Compositions 8740, 8630, 8735, 4140, 4130, 4037)
- Material Document and Classification: MIL-S-6049, MIL-S-6050, MIL-S-6098, MIL-S-5626, MIL-S-6758, MIL-S-8695
- Surface Treatment: Cadmium and chromate
- Surface Treatment Document and Classification: QQ-P-416, Type 2, Class 3
- Thread Series Designator: UNF
- Nominal Thread Diameter (inches): .190
- Thread Quantity (per inch): 32
- Thread Class: 3A
- Thread Direction: Right-hand
- Thread Length Range (inches): .324 to .364
- Fastener Length Range (inches): .709 to .729
- Head Style: B30 button
- Head Diameter Range (inches): .365 to .385
- Head Height Range (inches): .083 to .103
- Distance From Head Largest Bearing Surface to Shank Hole Center (inches): .136 to .146
- Internal Drive Style: D14 Slot
- Nominal Groove Diameter (inches): .141
- Shank Unthreaded Hole Diameter Range (inches): .070 to .080
