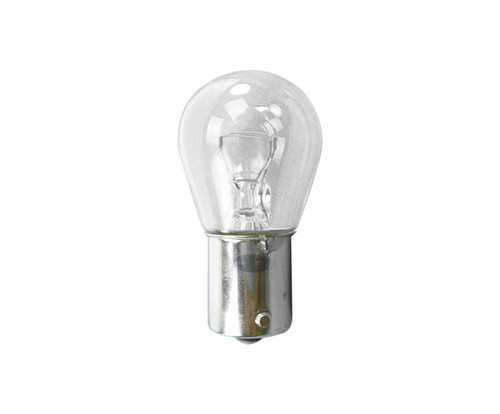

Wamco 1683 S8 28-Volt / 29-Watt BA15s Lamp, Incandescent

Our Part #: SGP160112-X10
Manufacture Part #: WL-1683
Each Price: $0.79
Our Price: $7.90 (10/Pack)
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Approvals and Conformities

Approvals and Conformities

NSN
6240-00-044-6914
MIL-SPEC#
MS354478-1683
Alternate PN#s
WL-1683

Product Attributes

Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
EAR99
Color Family
Clear
Manufacturer P/N
1683
Schedule B Code
9405.40.0000
Pack Quantity
10
Color
Clear
  • Overall Length: 2.000 Inches Maximum
  • Filament Designation: 2C-2R
  • Light Output Rating: 32.000 Spherical Candlepower Nominal Single Rating
  • Average Life Rating In Hours: 1000.0
  • Filament Heavy Duty Service Rating: Not Rated
  • Iii End Item Identification: Nsn 4210-01-486-1035 Tfft (Tactical Fire Fighting Truck); 2320-01-097-0260 Hemtt (Heavy Expanded Mobility Tactical Trucks)
  • Emitted Light Characteristic: Colorless
  • Light Center Length: 1.250 Inches Nominal
  • Voltage Rating: 28.000 Volts Nominal
  • Wattage Rating: 28.560 Watts
  • Base Style: Single Contact Bayonet Candelabra
  • Bulb Style: S (Straight Side)
  • Bulb Designator: S-8
  • Bulb Light Transmission Characteristic: Transparent
  • Current Rating For Which Designed: 1.020 Amperes Nominal
  • Rated Average Life: Hours
  • Burning Position: Any Acceptable
