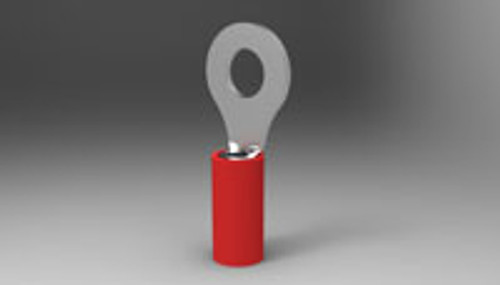

TE Connectivity 320571 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.18mm - Stud M6 - 25/Pack

TE Connectivity 320571 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.18mm - Stud M6 - 25/Pack
TE Connectivity 320571 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.18mm - Stud M6 - 25/Pack
TE Connectivity 320571 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.18mm - Stud M6 - 25/Pack
Our Part #: SGP33316-X25
Manufacture Part #: 320571
Our Price: $11.00
Price Per Pack - (Pack = 25 ea)

Bulk Shop & Save

  • 10 - 39 $10.75 ($0.43 ea)
  • 40 + $10.50 ($0.42 ea)
In-Stock: 1 Pack available.
Need More? 8 Packs on order and expected in ± 13-16 business days.
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

TE Connectivity 324158 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.18mm - Stud M2

TE Connectivity 324158 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.18mm - Stud M2

TE Connectivity 324158 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.18mm - Stud M2

> View Details
In-Stock: 1,677 Units available in ± 2-3 business days
Need More? Current lead time is 37-40 business days.
PART #: SGP33481
MFR PART #: 324158
Our Price: $0.79
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 320554 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.18mm - Stud M4 - 10/Pack

TE Connectivity 320554 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.18mm - Stud M4 - 10/Pack

TE Connectivity 320554 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.18mm - Stud M4 - 10/Pack

> View Details
On Order: 969 Packs on order & due in ± 8-12 days
Need More? Current lead time is 218-221 business days.
PART #: SGP33302-X10
MFR PART #: 320554
Our Price: $2.80
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 31894 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.56mm - Stud M6

TE Connectivity 31894 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.56mm - Stud M6

TE Connectivity 31894 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.56mm - Stud M6

> View Details
In-Stock: 235 Units available.
Need More? 4,100 Units on order and expected in ± 13-16 business days.
PART #: SGP33117
MFR PART #: 31894
Our Price: $0.44
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 36153 Ring Tongue Terminal - AWG 22-16 - Insulation Max 2.03-3.18mm - Stud 10 - 100/Pack

TE Connectivity 36153 Ring Tongue Terminal - AWG 22-16 - Insulation Max 2.03-3.18mm - Stud 10 - 100/Pack

TE Connectivity 36153 Ring Tongue Terminal - AWG 22-16 - Insulation Max 2.03-3.18mm - Stud 10 - 100/Pack

> View Details
On Order: 30 Packs on order & due in ± 7-10 days
Need More? Current lead time is 37-40 business days.
PART #: SGP35165-X100
MFR PART #: 36153
Our Price: $28.00
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 33465 Ring Tongue Terminal - AWG 6 - Insulation Max 6.35mm - Stud M6 - 25/Pack

TE Connectivity 33465 Ring Tongue Terminal - AWG 6 - Insulation Max 6.35mm - Stud M6 - 25/Pack

TE Connectivity 33465 Ring Tongue Terminal - AWG 6 - Insulation Max 6.35mm - Stud M6 - 25/Pack

> View Details
In-Stock: 2 Packs available.
Need More? Current lead time is 217-220 business days.
PART #: SGP33837-X25
MFR PART #: 33465
Our Price: $14.50
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 320563 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M6

TE Connectivity 320563 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M6

TE Connectivity 320563 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M6

> View Details
In-Stock: 737 Units available in ± 2-3 business days
Need More? Current lead time is 37-40 business days.
PART #: SGP33308
MFR PART #: 320563
Our Price: $0.47
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 33461 Ring Tongue Terminal - AWG 8 - Insulation Max 6.73mm - Stud M6

TE Connectivity 33461 Ring Tongue Terminal - AWG 8 - Insulation Max 6.73mm - Stud M6

TE Connectivity 33461 Ring Tongue Terminal - AWG 8 - Insulation Max 6.73mm - Stud M6

> View Details
In-Stock: 411 Units available in ± 2-3 business days
Need More? Current lead time is 52-55 business days.
PART #: SGP33834
MFR PART #: 33461
Our Price: $0.50
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 31887 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.56mm - Stud 10

TE Connectivity 31887 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.56mm - Stud 10

TE Connectivity 31887 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.56mm - Stud 10

> View Details
In-Stock: 4,879 Units available in ± 2-3 business days
Need More? Current lead time is 37-40 business days.
PART #: SGP33114
MFR PART #: 31887
Our Price: $0.19
Adding to cart… The item has been added
Adding to cart… The item has been added
Description
The Tyco AMP 320571 Terminal is a closed barrel, ring tongue terminal for wires AWG 22-16. It has a Pre-Insulated Diamond Grip (PIDG) body made from copper with a tin finish, and red nylon insulation.

Features

Product Type Features:
  • Terminal Shape: Ring Tongue
  • Receptacle Style: Straight
  • Body Style: PIDG
  • Barrel Type: Closed Barrel
  • Wire/Cable Type: Regular Wire
  • Insulation: Yes
  • Insulation Support: Insulation Support
  • Insulation Diameter (mm [in]): 3.18 [.125] Max.
  • Stud Diameter (mm [in]): 6.35 [0.250]
  • Stud Size: 1/4 [M6]
  • Shape: RING-041
  • Heavy Duty: No
  • Material: Copper
  • Finish: Tin
  • Color: Red
  • Insulation Material: Nylon

    • Electrical Characteristics:
  • Voltage (VAC): 300

    • Termination Features:
  • Wire/Cable Size (CMA): 509 – 3,260

    • Body Features:
  • Wire Range (mm [AWG]): 0.30-1.40² [22-16]
  • Tongue Material Thickness (mm [in]): 0.84 [0.033]

    • Contact Features:
  • Class: 1 & 2

    • Industry Standards:
  • Government/Industry Qualification: Yes
  • Government/Industry Part Number: MS25036-150
  • RoHS/ELV Compliance: RoHS compliant, ELV compliant
  • Lead Free Solder Processes: Not relevant for lead free process
  • RoHS/ELV Compliance History: Always was RoHS compliant

    • Packaging Features:
  • Packaging Method: Loose Piece

    • Other:
  • Brand: AMP
    • Product Attributes
    Country of Origin
    United States
    Shipping Weight
    0.15 pounds
    ECCN
    EAR99
    Manufacturer P/N
    320571
    Schedule B Code
    8803.90.9010
    Pack Quantity
    25
