TE Connectivity 320565 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.92mm - Stud M4 - 10/Pack

TE Connectivity 320565 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.92mm - Stud M4 - 10/Pack
TE Connectivity 320565 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.92mm - Stud M4 - 10/Pack
TE Connectivity 320565 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.92mm - Stud M4 - 10/Pack
Our Part #: SGP33309-X10
Manufacture Part #: 320565
Our Price: $3.20
Price Per Pack - (Pack = 10 ea)

Bulk Shop & Save

  • 10 + $3.10 ($0.31 ea)
In-Stock: 4 Packs available.
Need More? 416 Packs on order and expected in ± 13-16 business days.
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

TE Connectivity 320560 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M4 - 25/Pack

TE Connectivity 320560 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M4 - 25/Pack

TE Connectivity 320560 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M4 - 25/Pack

> View Details
In-Stock: 11 Packs available in ± 2-3 business days
Need More? Current lead time is 37-40 business days.
PART #: SGP33305-X25
MFR PART #: 320560
Our Price: $15.50
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 322337 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.05-4.32 - Stud M4

TE Connectivity 322337 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.05-4.32 - Stud M4

TE Connectivity 322337 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.05-4.32 - Stud M4

> View Details
In-Stock: 682 Units available in ± 2-3 business days
Need More? Current lead time is 37-40 business days.
PART #: SGP33389
MFR PART #: 322337
Our Price: $5.06
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 320554 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.18mm - Stud M4 - 10/Pack

TE Connectivity 320554 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.18mm - Stud M4 - 10/Pack

TE Connectivity 320554 Ring Tongue Terminal - AWG 22-16 - Insulation Max 3.18mm - Stud M4 - 10/Pack

> View Details
On Order: 969 Packs on order & due in ± 8-12 days
Need More? Current lead time is 218-221 business days.
PART #: SGP33302-X10
MFR PART #: 320554
Our Price: $2.80
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 320574 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud 10

TE Connectivity 320574 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud 10

TE Connectivity 320574 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud 10

> View Details
In-Stock: 471 Units available in ± 2-3 business days
Need More? Current lead time is 37-40 business days.
PART #: SGP33318
MFR PART #: 320574
Our Price: $0.38
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 320568 Ring Tongue Terminal - AWG 12-10 - Insulation Max 5.84mm - Stud M4 - 10/Pack

TE Connectivity 320568 Ring Tongue Terminal - AWG 12-10 - Insulation Max 5.84mm - Stud M4 - 10/Pack

TE Connectivity 320568 Ring Tongue Terminal - AWG 12-10 - Insulation Max 5.84mm - Stud M4 - 10/Pack

> View Details
In-Stock: 151 Packs available in ± 2-3 business days
Need More? Current lead time is 161-164 business days.
PART #: SGP33312-X10
MFR PART #: 320568
Our Price: $4.40
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 51864-1 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.67-3.81mm - Stud M4 - 100/Pack

TE Connectivity 51864-1 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.67-3.81mm - Stud M4 - 100/Pack

TE Connectivity 51864-1 Ring Tongue Terminal - AWG 16-14 - Insulation Max 2.67-3.81mm - Stud M4 - 100/Pack

> View Details
In-Stock: 6 Packs available in ± 1-2 business days
Need More? Current lead time is 48-51 business days.
PART #: SGP49354-X100
MFR PART #: 51864-1
Our Price: $42.00
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 320563 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M6

TE Connectivity 320563 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M6

TE Connectivity 320563 Ring Tongue Terminal - AWG 16-14 - Insulation Max 3.81mm - Stud M6

> View Details
In-Stock: 737 Units available in ± 2-3 business days
Need More? Current lead time is 37-40 business days.
PART #: SGP33308
MFR PART #: 320563
Our Price: $0.47
Adding to cart… The item has been added
Adding to cart… The item has been added
Description

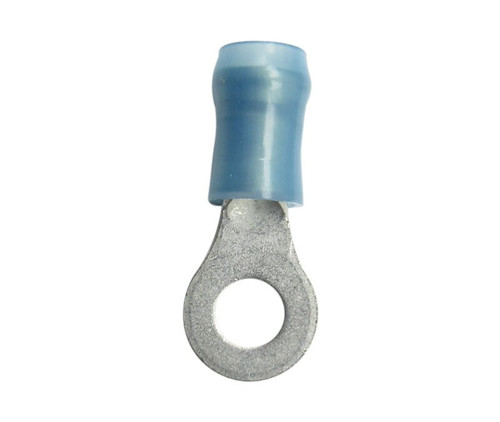

The Tyco AMP 320565 Terminal is a closed barrel, ring tongue terminal for wires AWG 16-14. It has a Pre-Insulated Diamond Grip (PIDG) body made from copper with a tin finish, and blue nylon insulation.

Features

Product Type Features:
  • Terminal Shape: Ring Tongue
  • Receptacle Style: Straight
  • Body Style: PIDG
  • Barrel Type: Closed Barrel
  • Wire/Cable Type: Regular Wire
  • Insulation: Yes
  • Insulation Support: Insulation Support
  • Insulation Diameter (mm [in]): 2.92-4.32 [.115-.170]
  • Stud Diameter (mm [in]): 4.34 [0.171]
  • Stud Size: 8 [M4]
  • Shape: RING-041
  • Heavy Duty: No
  • Material: Copper
  • Finish: Tin
  • Color: Blue
  • Insulation Material: Nylon

    • Electrical Characteristics:
  • Voltage (VAC): 300

    • Termination Features:
  • Wire/Cable Size (CMA): 2,050 – 5,180

    • Body Features:
  • Wire Range (mm [AWG]): 1.25-2.00² [16-14]
  • Tongue Material Thickness (mm [in]): 0.79 [0.031]

    • Industry Standards:
  • Government/Industry Qualification: No
  • RoHS/ELV Compliance: RoHS compliant, ELV compliant
  • Lead Free Solder Processes: Not relevant for lead free process
  • RoHS/ELV Compliance History: Always was RoHS compliant

    • Conditions for Usage:
  • Temperature Range (°C): 105

    • Packaging Features:
  • Packaging Method: Loose Piece

    • Other:
  • Brand: AMP
  • Comment: Available On-Tape for Automatic Termination.
    • Product Attributes
    Country of Origin
    United States
    Shipping Weight
    0.15 pounds
    ECCN
    9A991.d
    Manufacturer P/N
    320565
    Schedule B Code
    8536.90.4000
    Pack Quantity
    10
    Ship Dimensions
    1 x 0 x 0 inches
