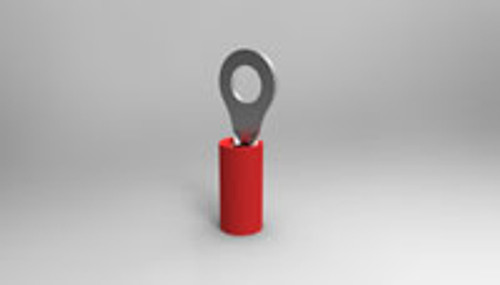

TE Connectivity 320551 Ring Tongue Terminal 16-22AWG 21.44mm 7.92mm Tin

TE Connectivity 320551 Ring Tongue Terminal 16-22AWG 21.44mm 7.92mm Tin
TE Connectivity 320551 Ring Tongue Terminal 16-22AWG 21.44mm 7.92mm Tin
TE Connectivity 320551 Ring Tongue Terminal 16-22AWG 21.44mm 7.92mm Tin
Our Part #: SGP33299
Manufacture Part #: 320551
Our Price: $0.26
Price Per Each

Bulk Shop & Save

  • 100 - 999 $0.25 ea.
  • 1000 + $0.24 ea.
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

TE Connectivity 1-321897-0 Ring Tongue Terminal 16-22AWG 20.22mm 7.92mm - 100/Pack

TE Connectivity 1-321897-0 Ring Tongue Terminal 16-22AWG 20.22mm 7.92mm - 100/Pack

TE Connectivity 1-321897-0 Ring Tongue Terminal 16-22AWG 20.22mm 7.92mm - 100/Pack

> View Details
PART #: SGP7951-X100
MFR PART #: 1-321897-0
Our Price: $1,112.00
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 323039 Ring Tongue Terminal 16-22AWG 23.01mm 9.53mm Tin - 100/Pack

TE Connectivity 323039 Ring Tongue Terminal 16-22AWG 23.01mm 9.53mm Tin - 100/Pack

TE Connectivity 323039 Ring Tongue Terminal 16-22AWG 23.01mm 9.53mm Tin - 100/Pack

> View Details
PART #: SGP33410-X100
MFR PART #: 323039
Our Price: $148.00
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 324011 Ring Tongue Terminal 16-22AWG 23.01mm 9.53mm Tin - 100/Pack

TE Connectivity 324011 Ring Tongue Terminal 16-22AWG 23.01mm 9.53mm Tin - 100/Pack

TE Connectivity 324011 Ring Tongue Terminal 16-22AWG 23.01mm 9.53mm Tin - 100/Pack

> View Details
PART #: SGP33455-X100
MFR PART #: 324011
Our Price: $144.00
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 36152 Red Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin - 100/Pack

TE Connectivity 36152 Red Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin - 100/Pack

TE Connectivity 36152 Red Ring Tongue Terminal 16-22AWG 20.24mm 7.14mm Tin - 100/Pack

> View Details
PART #: SGP35164-X100
MFR PART #: 36152
Our Price: $38.00
Adding to cart… The item has been added
Adding to cart… The item has been added
TE Connectivity 36149 Ring Tongue Terminal 16-22AWG Copper Red 17.07mm Tin - 50/Pack

TE Connectivity 36149 Ring Tongue Terminal 16-22AWG Copper Red 17.07mm Tin - 50/Pack

TE Connectivity 36149 Ring Tongue Terminal 16-22AWG Copper Red 17.07mm Tin - 50/Pack

> View Details
PART #: SGP35161-X50
MFR PART #: 36149
Our Price: $30.00
Adding to cart… The item has been added
Adding to cart… The item has been added
Description
The Tyco AMP 320551 Terminal is a closed barrel, ring tongue terminal for wires AWG 22-16. It has a Pre-Insulated Diamond Grip (PIDG) body made from copper with a tin finish, and red nylon insulation.

Features

Product Type Features:
  • Terminal Shape: Ring Tongue
  • Receptacle Style: Straight
  • Body Style: PIDG
  • Barrel Type: Closed Barrel
  • Wire/Cable Type: Regular Wire
  • Insulation: Yes
  • Insulation Support: Insulation Support
  • Insulation Diameter (mm [in]): 3.18 [.125] Max.
  • Stud Diameter (mm [in]): 4.17 [0.164]
  • Stud Size: 8 [M4]
  • Shape: RING-041
  • Heavy Duty: No
  • Material: Copper
  • Finish: Tin
  • Color: Red
  • Insulation Material: Nylon

    • Electrical Characteristics:
  • Voltage (VAC): 300

    • Termination Features:
  • Wire/Cable Size (CMA): 509 – 3,260

    • Body Features:
  • Wire Range (mm [AWG]): 0.30-1.40² [22-16]
  • Tongue Material Thickness (mm [in]): 0.84 [0.033]

    • Contact Features:
  • Class: 1 & 2

    • Industry Standards:
  • Government/Industry Qualification: Yes
  • Government/Industry Part Number: MS25036-149
  • RoHS/ELV Compliance: RoHS compliant, ELV compliant
  • Lead Free Solder Processes: Not relevant for lead free process
  • RoHS/ELV Compliance History: Always was RoHS compliant

    • Packaging Features:
  • Packaging Method: Loose Piece

    • Other:
  • Brand: AMP
    • Product Attributes
    Country of Origin
    United States
    Shipping Weight
    0.15 pounds
    ECCN
    EAR99
    Manufacturer P/N
    320551
    Schedule B Code
    8536.90.4000
    Pack Quantity
    1
    Approvals and Conformities
    NSN
    5940-00-557-1629
    Alternate PN#s
    MS25036-149
