INTERNATIONAL SHIPPING
Approvals and Conformities
Product Attributes
Country of Origin
United States
Shipping Weight
1950 pounds
ECCN
EAR99
Manufacturer P/N
17-7519-0000
Schedule B Code
8415.82.0115
Pack Quantity
1

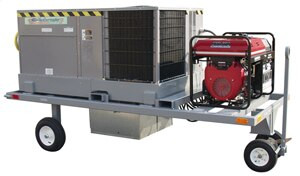

The Tronair 17-7519-0000 Air Conditioner 4 Ton - Diesel has input of 230V/60Hz/1ph/41.2 Amps/Diesel, is 132 inches long, 61 inches wide, 64 inches high and weighs 1950 lbs.
- Cooling capacity 48,000 Btu/hr output
- 1600 cfm maximum air flow
- Refrigerant type R-410A is environmentally safe
- Hermetic compressor belt driven with over current and over temperature protection
- 4,000 cfm propellor type condenser fan
- 12 in (30 cm) diameter, 25 ft (7.6 m) long output hose
- Dual suction high density filters
- 115 volt (ground fault interrupt) external AC utility outlet with 15 amp fuse and switch - 17-505-7000 & 17-7519-0000
- Sturdy welded frame with 16 gauge sheet metal cabinet
- Noncorrosive, sloped condensation drain pan, meets ASHRAE 62-89 (IAQ) standard
- Trailer mounted - Finish: Black
- 20 HP Honda engine - 17-7505-7000
- 18 HP Lombardini engine - 17-7519-7000
- 23 HP Subaru engine - 17-7524-0000
- 13 gal (49.2 l) tank with run time of 8 hours - 17-7505-7000
- 8 gal (30.3 l) tank with run time of 10 hours - 17-7519-7000
- 240/1 phase, 13.5 kW AC output
- Finish: Acrylic Enamel Gray
- Available Option, 8.7 kW heater, 29,700 Btu/hr maximum thematically controlled (Btu output will vary with input voltage) insert an "A" as the third digit of the model number (e.g. 17A7505-7000)
- Units are designed to cool and/or heat an aircraft through a window or door opening
