INTERNATIONAL SHIPPING
Approvals and Conformities
Alternate PN#s
02A7809-0110
Product Attributes
Country of Origin
United States
Shipping Weight
360 pounds
ECCN
EAR99
Color Family
Blue
Manufacturer P/N
02A7809C0110
Schedule B Code
8425.42.0000
Pack Quantity
1
Color
Blue

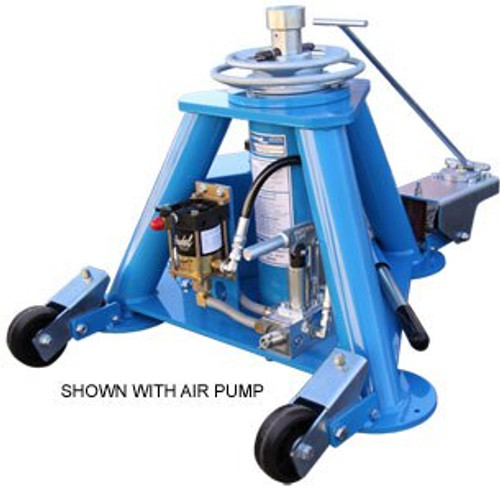

The Tronair 02A7809-0110 Tripod - Hydraulic - 10 Ton Jack - w/Air stands 20 inches high when closed, 47 inches high when fully extended, and weighs in at 250 lbs. This is a multi stage system that can hold 10 tons.
- Hand Pump with built-in pressure relief valve
- Threaded rams with improved hand wheel style safety nut
- Quick rising center extension
- Easy access filler/breather cap
- Heavy duty wheels on all jacks where spring loaded casters are not standard
- Hydraulic fluid: MIL-PRF-5606
- 3/4 in (2 cm) spherical radius cup jack pad
- Finish: Durable Powder Coat Tronair Blue
- Additional Standard Features - listed below by Model Number
- ? Approved Jack - insert a "C" as the eighth digit, (e.g. 02-0517C0140)
- Air Pump (field installed) - call factory
- Air Pump (factory installed) - insert an "A" as the third digit of the model number, (e.g. 02A0522-0140)
- Air Pump and Spring Loaded Casters (factory installed) - insert a "B" as the third digit of the model number, (e.g. 02B0517-0140)
- Spring Loaded Casters (factory installed) - insert a "C" as the third digit of the model number (e.g. 02C1036-0111) Not standard on 5 ton jacks
- K-1317 (field installed) - adds spring loaded casters to all 5 ton single stage jacks; except Model 02-7856-0100 use K-2812; one kit required per jack
- K-1318 (field installed) - adds spring loaded casters to Model 02-1032-0111; one kit required per jack
- K-1319 (field installed) - adds spring loaded casters to Model 02-1036-0111
- K-2812 (field installed) - adds spring loaded casters for models 02-0517-0140, 02-0522-0140 & 02-7828-0110. (1 each per jack)
- K-1106 (field installed) - air pump manifold kit, supplies shop air from a single source to three tripod jacks via three 25 ft. (7.6 m) hoses to run air pump.
- K-4220 (field installed) - air pump manifold kit, supplies shop air from a single source to four tripod jacks via four 25 ft. (7.6 m) hoses to run air pump.
- H-2395 (field installed) - jack cover (universal)
| Applications: | |
| Boeing 234 Chinook | Shorts 360 |
| Boeing CH47, MH47 Chinook | Sikorsky HH-60 Pave Hawk, Jayhawk |
| CASA C-295 | Sikorsky SH-60 Seahawk |
| Cessna Citation 560 XLS | Sikorsky UH-60 Black Hawk |
| Shorts 330 | |
