Approvals and Conformities
Alternate PN#s
H-MB-206T
Product Attributes
![](/content/flags/flag-of-united-states.png)
United States
Shipping Weight
0.1 pounds
Manufacturer P/N
S03-02-R
Pack Quantity
100
1.40mm OD solder sleeve with grounding lead
- Max temp: 302°F
- Min temp: 257°F
- Immersion resistant
- Sn63 solder
- Polyvinylidene fluoride

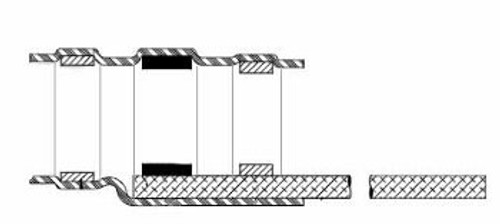

Product Revision | Product Dimensions | Cable Dimensions | |||||||
---|---|---|---|---|---|---|---|---|---|
Product Name | Ident. Code | L±1.75 (L±0.07) | øB min. | øC min. | H min. | øE max. | øF min. | øD max. | |
S03-01-R-100 | G | Size1R | 16.5 (0.650) | 1.9 (0.075) | 2.65 (0.105) | 8.25 (0.325) | 2.65 (0.105) | 0.90 (0.035) | 1.9 (0.075) |
S03-02-R-100 | G | Size2R | 16.5 (0.650) | 2.65 (0.105) | 3.68 (0.145) | 8.25 (0.325) | 3.68 (0.145) | 1.40 (0.055) | 2.65 (0.105) |
S03-03-R-100 | G | Size3R | 16.5 (0.650) | 4.30 (0.170) | 5.08 (0.200) | 8.25 (0.325) | 5.08 (0.200) | 2.15 (0.085) | 4.3 (0.170) |
S03-04-R-100 | G | Size4R | 19.1 (0.750) | 5.95 (0.235) | 6.45 (0.255) | 8.25 (0.325) | 6.45 (0.255) | 3.30 (0.130) | 5.95 (0.235) |
S03-05-R-100 | G | Size5R | 19.1 (0.750) | 7.0 (0.275) | 7.6 (0.300) | 8.25 (0.325) | 7.6 (0.300) | 4.30 (0.170) | 7.0 (0.275) |
