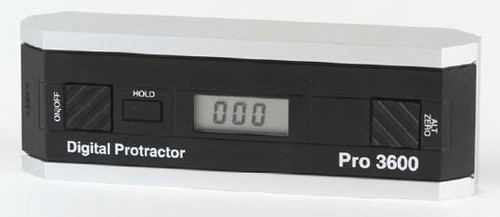

Using a propeller protractor to measure angles on flat or round objects, such as shafts or pipes, is easy with the SmartTool PRO 3600 digital protractor. Its highly advanced liquid-filled sensor and precision measurement design provide unsurpassed stability and accuracy for all angles in a 360-degree range. This 09429598 digital protractor is lightweight and rigid, with an extremely precise platform for accurate measurements, thanks to its precision machined aluminum frame.

Unlike the PRO 360 model, the PRO 3600 has a serial interface that's RS-232 compatible to transmit angle measurement data to a computer or another device. SkyGeek offers the PRO 3600 digital propeller protractor for sale at a low price.

Grooved frame along bottom for use with round objects; has threaded holes for rigid attachment
Capture readings or designate alternate reference surface for subsequent angle measurements with front panel buttons
Recalibrate in the field to factory accuracy on any flat surface
Operates up to 500 hours on single 9-volt battery
Automatic power-down feature
Ships standard with rigid plastic case

Download owner's manual

Features

Full 360 degree range (90° x 4)

Easy to read LCD display

Maximum accuracy of +/- 0.05° and maximum resolution of 0.01°

Precision machined aluminum frame

Unit can be recalibrated to factory accuracy in the field without special tools or fixtures

RS-232 compatible interface for computer data collection

Electrical Specifications
Range	Full 360°
Accuracy 0° +/-10° 90° +/-10° Other Angles	+/- 0.05° +/- 0.1° +/- 0.2°
Resolution Display RS-232 Output	0.01° 0.00549° Binary, 0.01° ASCII
Time Constant	0.4 seconds, typical
Power Supply	Standard 9VDC battery
Serial Port Protocol Voltage Baud Rate Output Impedance	RS-232 (except for voltage levels) 5 Volts 9600 bands 10K Ohm

Notes:

1) Specifications subject to change without notice. Specifications are at 77°F (25°C) unless otherwise stated.
2) Average over 360 degrees.

Physical Specifications
Dimensions Width Height Depth	6.015" (152.8mm) 1.9" (48.3mm) 1.215" (30.9mm)
Mounting Holes Thread Size Location	6-32 Centered on bottom of rail, 4.125" (104.8mm) apart
Weight	10.4 oz. (295 gm)
Temperature Range Operating Storage	23 to +122°F (5 to +50 °C) =4 to +149°F (-20 to +65°C)

Downloads

Safety Data Sheet

Product Attributes

Country of Origin

United States

Shipping Weight

2 pounds

ECCN

EAR99

Manufacturer P/N

09429598

Schedule B Code

9015.30.0000

Pack Quantity

Ship Dimensions

8 x 6 x 2 inches

Approvals and Conformities

Alternate PN#s

KS6005
