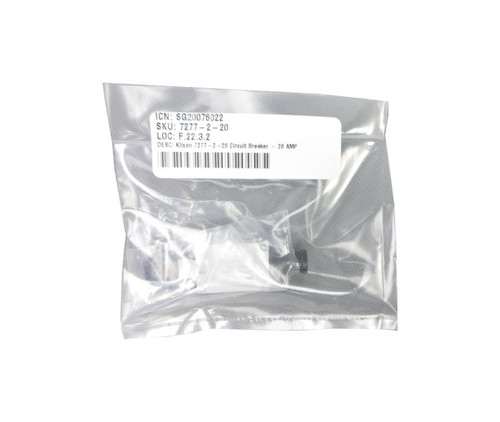

KLIXON® 7277-2-20 Circuit Breaker - 20 AMP

KLIXON® 7277-2-20 Circuit Breaker - 20 AMP
Our Part #: SGP70417
Manufacture Part #: 7277-2-20
Our Price: $28.99
Price Per Each

Bulk Shop & Save

  • 6 - 11 $28.58 ea.
  • 12 - 23 $28.17 ea.
  • 24 - 35 $27.78 ea.
  • 36 + $27.40 ea.
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Klixon 7277 series is designed for applications that do not require the tighter performance characteristics and approvals of our military circuit breakers.

Originally developed as an alternative to slow blow fuses, the trip–free 7277 is used extensively as primary electrical circuit protection on general aviation aircraft.

The military grade version of this circuit breaker is the Klixon 7274-2 series. The 7277 and 7274-2 series circuit breakers are physically and electrically identical, with the exception that the 7277 has wider calibration limits.

Performance Data
Interrupt Current 0.50–5 amps: unlimited at 28 VDC
7.50–15 amps: 2,000 amps at 28 VDC
0.50–1.50 amps: unlimited at 120 VAC, 400 Hz
2–5 amps: 800 amps at 120 VAC, 400 Hz
7.50–20 amps: 500 amps at 120 VAC, 400 Hz
Endurance 2,500 cycles: 120 VAC, 400 Hz inductive
5,000 cycles: 120 VAC, 400 Hz resistive
2,500 cycles: 30 VDC inductive
5,000 cycles: 30 VDC resistive
10,000 cycles: Mechanical, no load
Vibration 10G minimum, 50–500 Hz
Mechanical Shock 35G
Acceleration 10G
Weight 28 grams maximum
Country of Origin
United States
Size
20 AMP
Shipping Weight
0.05 pounds
ECCN
9A991.d
Manufacturer P/N
7277-2-20
Schedule B Code
8536.20.0040
Pack Quantity
1
Ship Dimensions
3 x 1 x 1 inches
Alternate PN#s
7277-2-20
