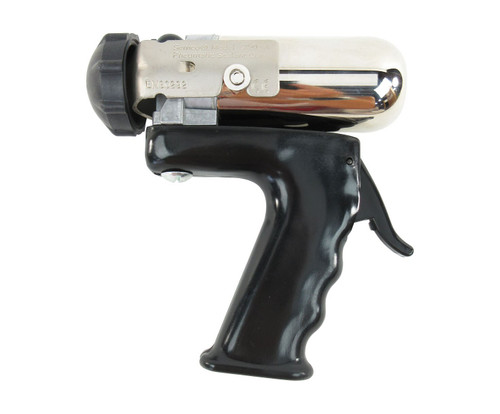

PPG® Semco® 250255 Model 250-A2.5 59 cc (2.5 oz) Pneumatic Sealant Gun Assembly w/ Handle (less Hose)

The 250A-2.5 OMES WITH handle and a 2.5 oz Metal Retainer need a different retainer? Sealant Gun Retainers, please note the Model Numbers and Sizes when choosing a retainer.

Take a look at the ccessories Tab o see some of the available Semco Accessories for this Sealant Gun. Or navigate over to our full selection of Sealant Tools.

peration

Attach the air hose assembly to the compressed air source. Some applications may require the user to replace the quick release hose connector with a fitting compatible with local air supply hardware. Unscrew the back knob and disengage the retainer from the valve assembly. Place the cartridge into the retainer and replace the loaded retainer onto the valve assembly. Tighten the back knob until snug. When the trigger is depressed, air pressure pushes against the plunger in the cartridge. This allows for positive, even dispensing of the material.

The material continues to flow until the trigger is released, thereby permitting a drop, shot, or bead to be accurately applied. The amount of material dispensed is determined by the viscosity of material, airline pressure, nozzle or needle orifice size, and length of time the trigger is depressed. When all the material has been dispensed from the cartridge, loosen the retainer by unscrewing the back knob. Remove the disposable cartridge and nozzle. Dispose of leftover material in accordance with local regulations and instructions on the material safety data sheet.
