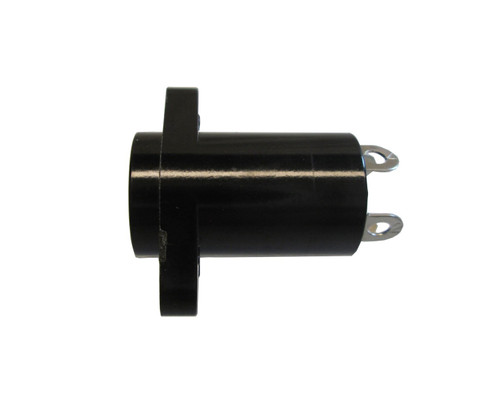

Amphenol NEXUS TJ-120 Black Plastic In-Line Molded Contact 4-Conductor Flanged Rear-Mounted Telephone Jack

Our Part #: SGP156377
Manufacture Part #: TJ-120
Our Price: $7.40 (Each)

Bulk Shop & Save

  • 25 - 49 $7.18 Each
  • 50 - 74 $6.98 Each
  • 75 - 99 $6.78 Each
  • 100 + $6.59 Each
world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Flange Rear-Mounted Jack

  • Conductors: 4
  • Application: Ruggedized Commercial / Military
  • Overall Width: .625 in
  • Overall Height: 1.188 in
  • Overall Length: 1.125 in
  • Contact Diameter: .285 in
  • Contact Length: .188 in
  • Shell Material: Plastic
  • Contact Material: Nickel Plated Beryllium Copper
  • Body Material: Phenolic
  • Solder Contact Terminals: Pre-tinned over Nickel Plating
  • Contact Resistance: ≤.02 O
  • Insulation Resistance: ≥ 1,000 mO
  • Dielectric Withstanding Voltage (RMS): ≥ 500 V
  • Insertion Force Maximum: 13 lb
  • Withdrawal Force: 6 to 10 lb
  • Product Attributes

    Country of Origin
    United States
    Shipping Weight
    0.01 pounds
    ECCN
    EAR99
    Color Family
    Black
    Manufacturer P/N
    TJ-120
    Schedule B Code
    8517.70.0000
    Pack Quantity
    1
    Ship Dimensions
    1 x 1 x 1 inches
    NSN
    5935-00-196-7374
    Color
    Black
    Material
    Plastic

    Other Part Numbers

    Alternate PN#s
    JB-11I, 73-505801-1, 914122350-001

    Description
