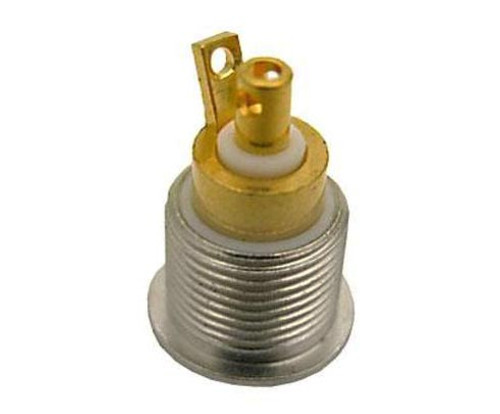

Military Standard MS90335-3 Connector, Receptacle, Electrical

Military Standard MS90335-3 Connector, Receptacle, Electrical
Our Part #: SGP138534
Manufacture Part #: MS90335-3
Price Per Each
Quote Item:
If you can wait, please 'Build A Quote' with the button below, and we will send you a quotation as soon as possible.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

  • Special Features: Material Of Body Is Brass And Insulator Is Polytetrafluoraethylene. Center Contact Is Tempered And Heat Treated Beryllium Copper. The Solder Lug Is Tempered Brass. Center And Ground Contacts Are Gold-Plated Copper. Hardware Is Electrodeposited Nickel Overcopper. Female Center Contact Fingers Closed Down Uniformly To Meet 4 Oz Minimum Withdrawal Force. To Ensure Electrical Continuity, The Body Shall Meet A Minimum Withdrawal Force Of 1Lb. Captivation Of Insulator And Center Contact Will Maintain 12 Poundsforce When Applied From Interface End. Manufacturers Identification To Be Permanently Stamped In Metal Part Of Receptacle. Insulator Shall Not Exceed Diameter Of Body.
  • Country of Origin
    United States
    Shipping Weight
    0.02 pounds
    ECCN
    EAR99
    Manufacturer P/N
    MS90335-3
    Schedule B Code
    8536.90.8085
    Pack Quantity
    1
    Ship Dimensions
    1 x 0 x 0 inches
    NSN
    5935-00-902-4389
