Approvals and Conformities
NSN
5305-01-063-0282
Alternate PN#s
12Z1196-244
Product Attributes
Country of Origin
United States
Shipping Weight
0.001 pounds
ECCN
9A991.d
Manufacturer P/N
MS24678-9
Schedule B Code
7318.15.2000
Pack Quantity
10

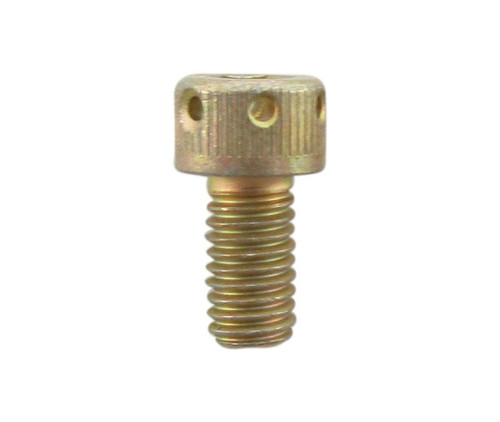

The MS24678-9 is a steel screw with a socket head. This screw has the following specs:
∗Unless otherwise noted, values are in inches
- Material: Steel
- Thread Class: 3A
- Thread Direction: Right-hand
- Minimum Thread Length: .329
- Nominal Fastener Length: .375
- Head Style: Flat chamfer
- Head Height Range: .185 to .190
- Head Diameter Range: .303 to .312
- Internal Drive Style: Hexagon
- Nominal Thread Diameter: .190
- Thread Quantity (per inch): 32
- Minimum Tensile Strength (lbs/square inch): 160000
- Surface Treatment: Cadmium and chromate
- Surface Treatment Document and Classification: QQ-P-416 Type 2, Class 3
- Thread Series Designator: UNF
- Width Across Flats Range: .156 to .159
- Hole Quantity: 6
- Hole Type: Drilled
- Thread Quantity (per inch): 32
- Hardness Rating Range (Rockwell): 36 to 43
- Minimum Yield Strength (lbs/square inch): 130000
- Hole Configuration Style: Round (internal hexagon)
- Nominal Hole Diameter: .044
