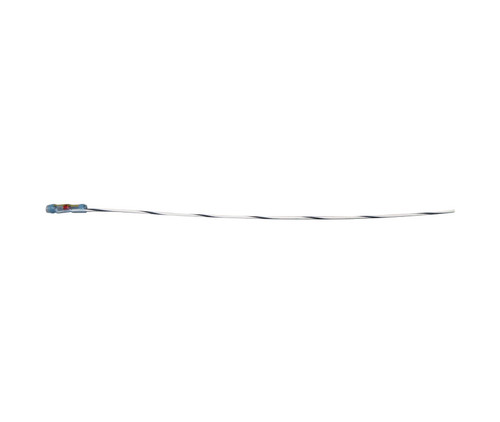

Military Specification M83519/2-6 Splice, Conductor - 25/Pack

Military Specification M83519/2-6 Splice, Conductor - 25/Pack
Our Part #: SGP114556-X25
Manufacture Part #: M83519-2-6
Our Price: $46.25
Price Per Pack - (Pack = 25 ea)

Bulk Shop & Save

  • 4 - 9 $45.50 ($1.82 ea)
  • 10 - 19 $44.75 ($1.79 ea)
  • 20 - 39 $43.75 ($1.75 ea)
  • 40 + $43.00 ($1.72 ea)
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

For Silver or Tin Plated Shield Termination Applications on Wire with Insulation Material Rated at 125°C and Above.

For continuous operation from –55°C to +150°C. These Termination Sleeves consist of a heat-shrinkable, transparent, polyvinylidene fluoride sleeve with an inner, pre-fluxed solder perform, two thermoplastic sealing insertsand a pre-installed ground lead, providing for quick, easy installation. In addition, these sleeves incorporate a thermal indicator to assist in termination technique. All MIL-Spec termination sleeves have a permanent identification number marked on the part. When heat is applied, the solder melts and flows to provide a superior connection between the ground lead and the shield. At the same time, the two thermoplastic sealing inserts melt and the outer sleeve shrinks to provide an environmentally protected termination.

Sold in Increments of 100.

Country of Origin
United States
Size
.075"
Shipping Weight
0.001 pounds
ECCN
EAR99
Color Family
Blue
Manufacturer P/N
M83519/2-6
Schedule B Code
8538.90.7080
Pack Quantity
25
Color
Blue
NSN
5940-01-135-7084
Alternate PN#s
H-ML-6
