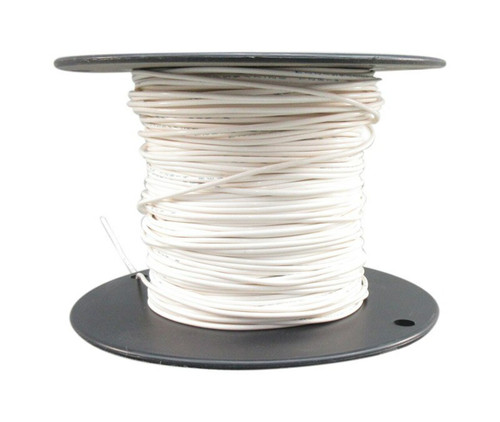

Military Specification M22759/34-4-9 White 4 AWG PTFE Tapes/Coated Fiberglass Braid Wire

Military Specification M22759/34-4-9 White 4 AWG PTFE Tapes/Coated Fiberglass Braid Wire
Military Specification M22759/34-4-9 White 4 AWG PTFE Tapes/Coated Fiberglass Braid Wire
Our Part #: SGP126122
Manufacture Part #: M22759-34-4-9
Our Price: $6.57
Price Per Foot

Bulk Shop & Save

  • 500 - 999 $5.47 ft.
  • 1000 - 2499 $5.30 ft.
  • 2500 - 4999 $5.13 ft.
  • 5000 + $4.98 ft.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

NSN
6145-01-154-0994
MIL-SPEC#
MIL-W-22759/34-4-9
SAE Spec#
AS22759/34-4-9

Product Attributes

Country of Origin
United States
Shipping Weight
0.05 pounds
ECCN
EAR99
Color Family
White
Manufacturer P/N
M22759/34-4-9
Schedule B Code
8548.90.0100
Pack Quantity
1
Series
M22759-34
Conductor Stranding
133/25
AWG Size
4
Color
White
Material
Plastic PTFE
  • Cross-Sectional Shape Style: Round
  • Temp Rating: 150.0 Deg Celsius
  • Cross Section Outside Diameter: 0.310 Inches Nominal
  • Strand Quantity Per Conductor: 133 Single Conductor
  • Conductor Form: Stranded Single Conductor
  • Round Conductor Size: 4 Awg Single Conductor
  • Strand Awg Size Per Conductor: 25 Single Conductor
  • Voltage Rating: 600.0 Maximum Root Mean Square (Rms) Operating Voltage Single Conductor
  • Color: White 1St Position Cover Single Conductor
  • Material: Copper Alloy 101 Core Conductor Single Conductor Or Copper Alloy 102 Core Conductor Single Conductor
  • Material: Plastic Cross-Linked Polyolefin 1St Position Primary Insulation Single Conductor
  • Material: Plastic Cross-Linked Polyolefin 2Nd Position Jacket Single Conductor
  • Material Document And Classification: Astm B33 Assn Std All Material Responses Core Conductor Single Conductor
  • Surface Treatment: Tin Core Conductor Single Conductor
  • Surface Treatment Document And Classification: Astm B33-63 Assn Std Single Treatment Response Core Conductor Single Conductor
