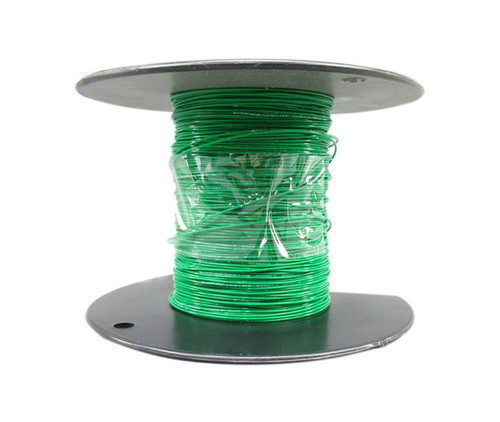

Military Specification M22759/11-26-5 Green 26 AWG PTFE Tapes/Coated Fiberglass Braid Wire

Military Specification M22759/11-26-5 Green 26 AWG PTFE Tapes/Coated Fiberglass Braid Wire
Military Specification M22759/11-26-5 Green 26 AWG PTFE Tapes/Coated Fiberglass Braid Wire
Our Part #: SGP126033
Manufacture Part #: M22759-11-26-5
Our Price: $0.32
Price Per Foot

Bulk Shop & Save

  • 500 - 999 $0.26 ft.
  • 1000 - 2499 $0.25 ft.
  • 2500 - 4999 $0.24 ft.
  • 5000 + $0.23 ft.

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

Related Items

Product Added to Cart Successfully

Approvals and Conformities

Approvals and Conformities

MIL-SPEC#
MIL-W-22759/11-26-5
SAE Spec#
AS22759/11-26-5

Product Attributes

Country of Origin
United States
Size
26 AWG
Shipping Weight
0.05 pounds
ECCN
EAR99
Color Family
Green
Manufacturer P/N
M22759/11-26-5
Schedule B Code
8548.90.0100
Pack Quantity
1
Series
M22759/11
Color
Green
Material
Plastic PTFE
M22759/11-26-5 wire uses a Polytetrfluoroehtylene (PTFE) insulation designed for aerospace applications. Ideal where resistance to high temperatures and high reliability are required.

This wire is non-flammable, self-extinguishing, and resists soldering iron contact. It is preferred where smoke emission, current overload conditions, flammability, or mechanical attack may be problems.

Features

  • Insulation: Polytetrafluoroethylene (PTFE)
  • Conductor: Silver Plated Copper Conductor
  • Voltage Rating: 600 Volts
  • Temperature: -55°C to +200°C
  • Color: Green
  • Gauge (AWG): 26
  • Stranding: 19/38
  • O.D. Min (Inches): .036
  • O.D. Max (Inches): .040
  • Resistance @ 20°C OHMS/1000’ max: 38.40
  • Max Weight - Lbs/1000': 1.74
