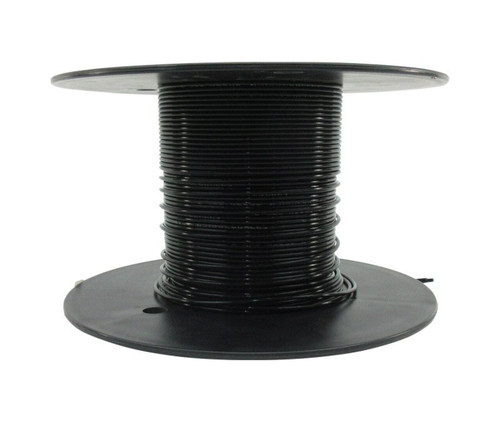

Military Specification M22759/11-24-0 Black 24 AWG PTFE Tapes/Coated Fiberglass Braid Wire - 700-Ft/Roll

Military Specification M22759/11-24-0 Black 24 AWG PTFE Tapes/Coated Fiberglass Braid Wire - 700-Ft/Roll
Our Part #: SGP126024-X700
Manufacture Part #: M22759-11-24-0
Our Price: $315.00
Price Per Roll - (Roll = 700 ft)
In-Stock: 1 Roll in stock.
**What we have in Stock is what we have available.**
Adding to cart… The item has been added

world wide icon INTERNATIONAL SHIPPING

SkyGeek welcomes international orders!

Please note: such orders are funneled into our NY warehouse and may take an extra 7-10 days to process. The benefit to this: You get one package shipped which reduces added taxes and duties that may be incurred from multiple shipments.

M22759/11-24-0 wire uses a Polytetrfluoroehtylene (PTFE) insulation designed for aerospace applications. Ideal where resistance to high temperatures and high reliability are required.

This wire is non-flammable, self-extinguishing, and resists soldering iron contact. It is preferred where smoke emission, current overload conditions, flammability, or mechanical attack may be problems.

Features

  • Insulation: Polytetrafluoroethylene (PTFE)
  • Conductor: Silver Plated Copper Conductor
  • Voltage Rating: 600 Volts
  • Temperature: -55°C to +200°C
  • Color: Black
  • Gauge (AWG): 24
  • Stranding: 19/36
  • O.D. Min (Inches): .041
  • O.D. Max (Inches): .045
  • Resistance @ 20°C OHMS/1000’ max: 24.30
  • Max Weight - Lbs/1000': 2.41
Country of Origin
United States
Size
24 AWG
Shipping Weight
0.05 pounds
ECCN
EAR99
Color Family
Black
Manufacturer P/N
M22759/11-24-0
Schedule B Code
8548.90.0100
Pack Quantity
700
Ship Dimensions
0 x 0 x 0 inches
Series
M22759/11
Color
Black
Material
Plastic PTFE
MIL-SPEC#
MIL-W-22759/11-24-0
SAE Spec#
AS22759/11-24-0
